Inch Lock Plate

Inch Lock Plate P48-P950
Product Name : Inch Lock Plate
Product Description

Inch lock plate: P48-P950

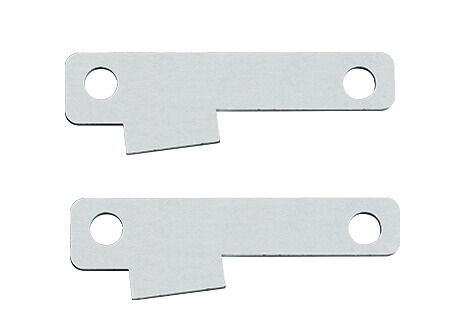

Professional and well-experienced manufacturer of Inch lock plates with “CS” Brand, We are the finest quality Inch lock plates manufacturer and a famous Inch lock plates exporter in Taiwan, supplying Inch lock plates to alll over the world. Our lock plates are produced by Wire Electrical Discharge Machining(Wire EDM). With Wire EDM, we can produce the most complex precision components at a relatively low cost and fast production rate while maintaining high accuracy and repeatability. It assists in bearing lock nuts and suitable for large sizes to prevent dropping. Surface treatment: Zinc-plated.

Inch lock plate: P48-P950

Inquiry
Product Introduction

Product Model : P-000

Lock Plate Dimensions (Inches)

proimages/product/03SNP_SNW/03-04_P-000.jpg

Dimensions in inches

Plate
Number		ThicknessHeight Hole
Center

Key
Location
Width

Cap screw
Size		Hole
Size		LengthM2
max
Q1
min		A1
max		B1
max		C1
max		D1
max		E1
max		F1
max		G1
max		J2K2
min		L2
min
P-48 0.125 1.125 0.750 2.711 0.625 0.312 0.625 1.000 5/16-18 x 5/8 0.375 3.500 0.406
P-52 0.125 1.156 0.813 2.938 0.656 0.352 0.656 1.063 5/16-18 x 5/8 0.375 3.750 0.406
P-56 0.125 1.156 0.781 3.148 0.625 0.334 0.656 1.125 5/16-18 x 5/8 0.375 3.938 0.406
P-60 0.125 1.375 0.969 3.407 0.844 0.460 0.844 1.250 3/8-16 x 3/4 0.438 4.344 0.469
P-64 0.125 1.312 1.000 3.601 0.781 0.424 0.812 1.313 3/8-16 x 3/4 0.438 4.531 0.469
P-68 0.125 1.250 1.094 3.828 0.781 0.394 0.812 1.375 3/8-16 x 3/4 0.438 4.750 0.469
P-72 0.125 1.250 1.094 4.022 0.750 0.394 0.812 1.375 3/8-16 x 3/4 0.438 4.906 0.438
P-76 0.125 1.500 1.094 4.281 0.906 0.461 1.125 1.375 1/2-13 x 7/8 0.562 5.438 0.594
P-80 0.125 1.469 1.094 4.475 0.906 0.493 1.031 1.500 1/2-13 x 7/8 0.562 5.719 0.625
P-84 0.125 1.562 1.188 4.701 0.938 0.495 1.062 1.500 1/2-13 x 7/8 0.562 5.812 0.562
P-88 0.125 1.656 1.281 4.960 1.032 0.531 1.219 1.688 5/8-11 x 1 0.688 6.250 0.625
P-92 0.125 1.656 1.343 5.186 1.156 0.593 1.188 1.688 5/8-11 x 1 0.688 6.422 0.625
P-96 0.156 1.562 1.312 5.364 1.063 0.563 1.406 1.688 5/8-11 x 1 1/4 0.688 6.594 0.625
P-500 0.156 1.688 1.281 5.606 1.125 0.563 1.281 1.688 5/8-11 x 1 1/4 0.688 6.844 0.625
P-530 0.156 2.125 1.563 6.060 1.375 0.563 1.500 1.688 5/8-11 x 1 1/4 0.688 7.312 0.625
P-560 0.156 1.875 1.344 6.254 1.125 0.563 1.500 1.688 5/8-11 x 1 1/4 0.688 7.500 0.625
P-600 0.156 2.000 1.438 6.723 1.250 0.563 1.562 1.688 5/8-11 x 1 1/4 0.688 8.000 0.625
P-630 0.156 2.094 1.656 7.062 1.438 0.718 1.562 1.875 5/8-11 x 1 1/4 0.688 8.312 0.625
P-670 0.156 2.109 1.688 7.510 1.438 0.688 1.719 1.875 5/8-11 x 1 1/4 0.688 8.750 0.625
P-710 0.156 2.188 1.688 7.936 1.438 0.688 1.875 1.875 5/8-11 x 1 1/4 0.688 9.188 0.625
P-750 0.188 2.188 1.688 8.353 1.438 0.688 1.875 1.875 5/8-11 x 1 1/4 0.688 9.594 0.625
P-800 0.188 2.219 1.688 8.970 1.438 0.688 2.125 1.875 5/8-11 x 1 1/4 0.688 10.219 0.625
P-850 0.188 2.469 1.906 9.456 1.625 0.813 2.344 1.875 3/4-10 x 1 1/2 0.812 10.938 0.750
P-900 0.188 2.438 1.937 10.010 1.593 0.750 2.500 1.875 3/4-10 x 1 1/2 0.812 11.500 0.750
P-950 0.188 2.531 1.875 10.525 1.593 0.750 2.625 1.875 3/4-10 x 1 1/2 0.812 12.000 0.750
