Reliable Bearing Adapter Sleeve Suppliers : CHIN SING, Adapter Sleeves for Metric Shafts Expert

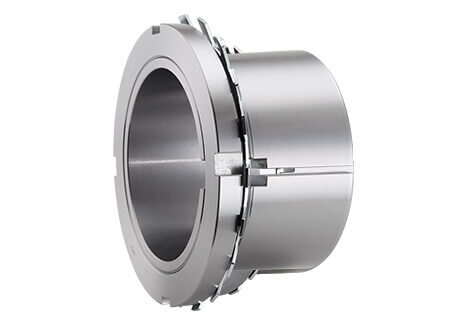

Product Name : Bearing Adapter Sleeves

Product Description

What Is the Purpose of Bearing Adapter Sleeves?

Bearing adapter sleeves play a pivotal role in machinery by simplifying the installation and disassembly of bearings on cylindrical shafts. Specifically designed to accommodate bearings with a tapered bore onto cylindrical seats, these sleeves offer versatile usage on both plain and stepped shafts. They require no additional location on the shaft and are easily installed. When applied to plain shafts, bearings can be positioned at any point along the shaft. In the case of stepped shafts, when paired with an L-shaped spacer ring, these sleeves ensure precise axial positioning of bearings, simplifying the process of mounting and dismounting bearings.

Benefits and Functions

1. Facilitates Installation

With a tapered bore, these sleeves are easily mounted on shafts, ensuring proper alignment and reducing the risk of misalignment during assembly.

2. Ease of Replacement

During maintenance or bearing replacement, adapter sleeves play a pivotal role in simplifying disassembly. They allow for swift removal of bearings without causing damage to the shaft, minimizing downtime and optimizing the overall efficiency of machinery.

3. Improved Bearing Performance

By providing a stable and secure connection between the shaft and the bearing, these sleeves contribute to improved load distribution and reduced stress on components.

Leading Bearing Adapter Sleeve Suppliers

When it comes to adapter sleeves for metric shafts, we offer H2 H3 H23 H30 H31 H32 H39 specs for clients. To increase durability, all our sleeves are manufactured with material SS400 and supplied completely with bearing lock nuts and bearing lock washers or locking plates. Our precision-engineered sleeves offer exceptional reliability and performance, ensuring seamless integration into your machinery. Feel free to contact us for more bearing adapter sleeve details.

Q'ty :

Inquiry

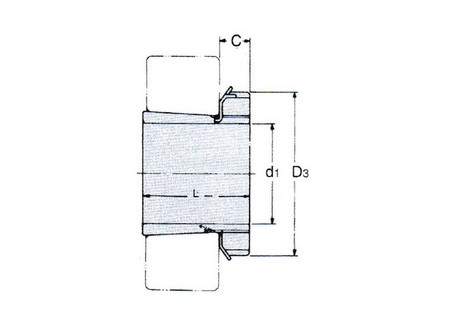

Product Model : H2/HE2/HS2/HA2

Adapter Sleeve NO.	d1				L mm	D3 mm	C mm	Lock Nut	Lock Washer	Weight kg
	H mm	HE in	HS in	HA in
	H mm	HE in	HS in	HA in							H204	17	-	-	-	24	32	7	AN04	AW04	0.041
H205	20	3/4	7/8	13/16	26	38	8	AN05	AW05	0.070
H206	25	1	7/8	15/16	27	45	8	AN06	AW06	0.099
H207	30	1 1/4	1 1/8	1 3/16	29	52	9	AN07	AW07	0.125
H208	35	1 1/4	1 3/8	1 5/16	31	58	10	AN08	AW08	0.174
H209	40	1 1/2	1 5/8	1 7/16	33	65	11	AN09	AW09	0.227
H210	45	1 3/4	1 5/8	1 11/16	35	70	12	AN10	AW10	0.274
H211	50	2	1 7/8	1 15/16	37	75	12	AN11	AW11	0.308
H212	55	2 1/4	2 1/8	2 1/16	38	80	13	AN12	AW12	0.346
H213	60	2 1/4	2 3/8	2 3/16	40	85	14	AN13	AW13	0.401
H214	60	2 1/4	-	2 5/16	41	92	14	AN14	AW14	0.593
H215	65	2 1/2	2 5/8	2 7/16	43	98	15	AN15	AW15	0.707
H216	70	2 3/4	2 7/8	2 11/16	46	105	17	AN16	AW16	0.882
H217	75	3	-	2 15/16	50	110	18	AN17	AW17	1.020
H218	80	3 1/4	3 1/8	3 3/16	52	120	18	AN18	AW18	1.190
H219	85	3 1/4	-	3 5/16	55	125	19	AN19	AW19	1.370
H220	90	3 1/2	-	3 7/16	58	130	20	AN20	AW20	1.490
H221	95	-	-	-	60	140	20	AN21	AW21	1.720
H222	100	4	-	3 15/16	63	145	21	AN22	AW22	1.930
CS adapter sleeves are supplied completely with lock nuts and lock washers. Adapter for these bores are designated HE/HS/HA.

Product Model : H3/HE3/HS3/HA3

Adapter Sleeve NO.	d1				L mm	D3 mm	C mm	Lock Nut	Lock Washer	Weight kg
	H mm	HE in	HS in	HA in
	H mm	HE in	HS in	HA in							H304	17	-	-	-	28	32	7	AN04	AW04	0.045
H305	20	3/4	7/8	-	29	38	8	AN05	AW05	0.075
H306	25	1	7/8	15/16	31	45	8	AN06	AW06	0.109
H307	30	1 1/4	1 1/8	1 3/16	35	52	9	AN07	AW07	0.142
H308	35	1 1/4	1 3/8	1 5/16	36	58	10	AN08	AW08	0.189
H309	40	1 1/2	1 5/8	1 7/16	39	65	11	AN09	AW09	0.248
H310	45	1 3/4	1 5/8	1 11/16	42	70	12	AN10	AW10	0.303
H311	50	2	1 7/8	1 15/16	45	75	12	AN11	AW11	0.345
H312	55	2 1/4	2 1/8	2 1/16	47	80	13	AN12	AW12	0.394
H313	60	2 1/4	2 3/8	2 3/16	50	85	14	AN13	AW13	0.458
H314	60	2 1/4	-	-	52	92	14	AN14	AW14	0.723
H315	65	2 1/2	2 5/8	2 7/16	55	98	15	AN15	AW15	0.831
H316	70	2 3/4	2 7/8	2 11/16	59	105	17	AN16	AW16	1.03
H317	75	3	-	2 15/16	63	110	18	AN17	AW17	1.180
H318	80	3 1/4	3 1/8	3 3/16	65	120	18	AN18	AW18	1.370
H319	85	3 1/4	-	3 5/16	68	125	19	AN19	AW19	1.560
H320	90	3 1/2	-	3 7/16	71	130	20	AN20	AW20	1.690
H321	95	-	-	-	74	140	20	AN21	AW21	1.950
H322	100	4	-	3 15/16	77	145	21	AN22	AW22	2.180
CS adapter sleeves are supplied completely with lock nuts and lock washers. Adapter for these bores are designated HE/HS/HA

Product Model : H23(H2304~2326)HE23/HS23/HA23

Adapter Sleeve NO.	d1				L mm	D3 mm	C mm	Lock Nut	Lock Washer	Weight kg
	H mm	HE in	HS in	HA in
	H mm	HE in	HS in	HA in							H2304	17	-	-	-	31	32	7	AN04	AW04	0.049
H2305	20	3/4	7/8	13/16	35	38	8	AN05	AW05	0.087
H2306	25	1	7/8	15/16	38	45	8	AN06	AW06	0.126
H2307	30	1 1/4	1 1/8	1 3/16	43	52	9	AN07	AW07	0.165
H2308	35	1 1/4	1 3/8	1 5/16	46	58	10	AN08	AW08	0.224
H2309	40	1 1/2	1 5/8	1 7/16	50	65	11	AN09	AW09	0.280
H2310	45	1 3/4	1 5/8	1 11/16	55	70	12	AN10	AW10	0.362
H2311	50	2	1 7/8	1 15/16	59	75	12	AN11	AW11	0.420
H2312	55	2 1/4	2 1/8	2 1/16	62	80	13	AN12	AW12	0.481
H2313	60	2 1/4	2 3/8	2 3/16	65	85	14	AN13	AW13	0.557
H2314	60	2 1/4	-	-	68	92	14	AN14	AW14	0.897
H2315	65	2 1/2	2 5/8	2 7/16	73	98	15	AN15	AW15	1.050
H2316	70	2 3/4	2 7/8	2 11/16	78	105	17	AN16	AW16	1.280
H2317	75	3	-	2 15/16	82	110	18	AN17	AW17	1.450
H2318	80	3 1/4	3 1/8	3 3/16	86	120	18	AN18	AW18	1.690
H2319	85	3 1/4	-	3 5/16	90	125	19	AN19	AW19	1.920
H2320	90	3 1/2	-	3 7/16	97	130	20	AN20	AW20	2.150
H2321	95	-	-	-	101	140	20	AN21	AW21	2.460
H2322	100	4	-	3 15/16	105	145	21	AN22	AW22	2.740
H2324	110	4 1/4	-	4 3/16	112	155	22	AN24	AW24	3.190
H2326	115	4 1/2	-	4 7/16	121	165	23	AN26	AW26	4.600
CS adapter sleeves are supplied completely with lock nuts and lock washers. Adapter for these bores are designated HE/HS/HA.

Product Model : H23(H2328~2356)HE23/HS23/HA23

Adapter Sleeve NO.	d1				L mm	D3 mm	C mm	C⁵⁾₁ mm	Lock Nut	Lock Washer	Weight kg
	H mm	HE in	HS in	HA in
	H mm	HE in	HS in	HA in								H2328	125	5	4 13/16	4 15/16	131	180	24	-	AN28	AW28	5.550
H2330	135	5 1/4	-	5 3/16	139	195	26	-	AN30	AW30	6.630
H2332	140	5 1/2	-	5 7/16	147	210	28	-	AN32	AW32	9.140
H2334	150	6	-	5 15/16	154	220	29	-	AN34	AW34	10.200
H2336	160	6 1/2	-	6 7/16	161	230	30	-	AN36	AW36	11.300
H2338	170	6 3/4	-	6 15/16	169	240	31	-	AN38	AW38	12.600
H2340	180	7	-	7 3/16	176	250	32	-	AN40	AW40	13.900
H2344	200	8	7 7/8	7 15/16	183	280	32	44	AN44	AL44	16.700
H2348	220	8 1/2	-	8 15/16	196	300	34	46	AN48	AL48	19.700
H2352	240	9 1/2	-	9 7/16	208	330	36	49	AN52	AL52	24.200
H2356	260	10 1/2	-	9 15/16	221	350	38	51	AN56	AL56	27.800
CS adapter sleeves are supplied completely with lock nuts and lock washers or lock plates. Adapter for these bores are designated HE/HS/HA.

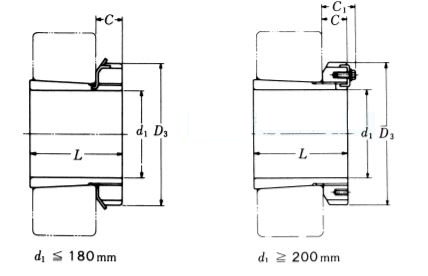

Product Model : H30/HE30/HA30

Adapter Sleeve NO.	d1			L mm	D3 mm	C mm	C⁴⁾₁ mm	Lock Nut	Lock Washer & Lock Plate	Weight kg
	H mm	HE in	HA in
	H mm	HE in	HA in								H3024	110	4 1/4	4 3/16	72	145	22	-	ANL24	AWL24	1.930
H3026	115	4 1/2	4 7/16	80	155	23	-	ANL26	AWL26	2.850
H3028	125	5	4 15/16	82	165	24	-	ANL28	AWL28	3.160
H3030	135	5 1/4	5 3/16	87	180	26	-	ANL30	AWL30	3.890
H3032	140	5 1/2	5 7/16	93	190	28	-	ANL32	AWL32	5.210
H3034	150	6	5 15/16	101	200	29	-	ANL34	AWL34	5.990
H3036	160	6 1/2	6 7/16	109	210	30	-	ANL36	AWL36	6.830
H3038	170	6 3/4	6 15/16	112	220	31	-	ANL38	AWL38	7.450
H3040	180	7	7 3/16	120	240	32	-	ANL40	AWL40	9.190
H3044	200	8	7 15/16	128	260	30	41	ANL44	ALL44	10.300
H3048	220		8 15/16	133	290	34	46	ANL48	ALL48	13.200
H3052	240	9 1/2	9 7/16	147	310	34	46	ANL52	ALL52	15.300
H3056	260		10 7/16	152	330	38	50	ANL56	ALL56	17.700
H3060	280	-	10 15/16	168	360	42	54	ANL60	ALL60	22.800
H3064	300	12	11 15/16	171	380	42	55	ANL64	ALL64	24.600
H3068	320	12 1/2	12 7/16	187	400	45	58	ANL68	ALL68	28.700
H3072	340	-	13 7/16	188	420	45	58	ANL72	ALL72	30.500
H3076	360	-	13 15/16	193	450	48	62	ANL76	ALL76	35.800
H3080	380	-	-	210	470	52	66	ANL80	ALL80	41.300
H3084	400	-	-	212	490	52	66	ANL84	ALL84	43.700
H3088	410	-	-	228	520	60	77	ANL88	ALL88	65.200
H3092	430	-	-	234	540	60	77	ANL92	ALL92	69.500
H3096	450	-	-	237	560	60	77	ANL96	ALL96	73.300
H30/500	470	-	-	247	580	68	85	ANL100	ALL100	81.800
CS adapter sleeves are supplied completely with lock nuts and lock washers or lock plates. Adapter for these bores are designated HE/HA. Adapter with the dimension C1 is equipped with a locking device as shown in the right illustration.

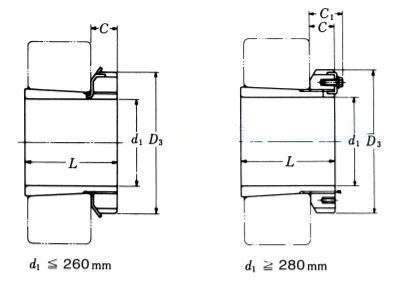

Product Model : H31/HE31/HA31

Adapter Sleeve NO.	d1			L mm	D3 mm	C mm	C⁴⁾₁ mm	Lock Nut	Lock Washer & Lock Plate	Weight kg
	H mm	HE in	HA in
	H mm	HE in	HA in								H3120	90	3 1/2	3 7/16	76	130	20	-	AN20	AW20	1.800
H3122	100	4	3 15/16	81	145	21	-	AN22	AW22	2.250
H3124	110	4 1/4	4 3/16	88	155	22	-	AN24	AW24	2.640
H3126	115	4 1/2	4 7/16	92	165	23	-	AN26	AW26	3.660
H3128	125	5	4 15/16	97	180	24	-	AN28	AW28	4.340
H3130	135	5 1/4	5 3/16	111	195	26	-	AN30	AW30	5.520
H3132	140	5 1/2	5 7/16	119	210	28	-	AN32	AW32	7.670
H3134	150	6	5 15/16	122	220	29	-	AN34	AW34	8.380
H3136	160	6 1/2	6 7/16	131	230	30	-	AN36	AW36	9.500
H3138	170	6 3/4	6 15/16	141	240	31	-	AN38	AW38	10.800
H3140	180	7	7 3/16	150	250	32	-	AN40	AW40	12.100
H3144	200	8	7 15/16	158	280	32	44	AN44	AL44	14.700
H3148	220	8 1/2	-	169	300	34	46	AN48	AL48	17.300
H3152	240	9 1/2	-	187	330	36	49	AN52	AL52	22.000
H3156	260	10 1/2	-	192	350	38	51	AN56	AL56	24.500
H3160	280	-	-	208	380	40	53	AN60	AL60	30.200
H3164	300	12	-	226	400	42	56	AN64	AL64	34.900
H3168	320	12 1/2	-	254	440	55	72	AN68	AL68	49.500
H3172	340	-	-	259	460	58	75	AN72	AL72	54.200
H3176	360	-	-	264	490	60	77	AN76	AL76	61.700
H3180	380	-	-	272	520	62	82	AN80	AL80	70.600
H3184	400	-	-	304	540	70	90	AN84	AL84	84.200
H3188	410	-	-	307	560	70	90	AN88	AL88	104.000
H3192	430	-	-	326	580	75	95	AN92	AL92	116.000
H3196	450	-	-	335	620	75	95	AN96	AL96	133.000
H31/500	470	-	-	356	630	80	100	AN100	AL100	143.000
CS adapter sleeves are supplied completely with lock nuts and lock washers or lock plates. Adapter for these bores are designated HE/HA Adapter with the dimension C1 is equipped with a locking device as shown in the right illustration.

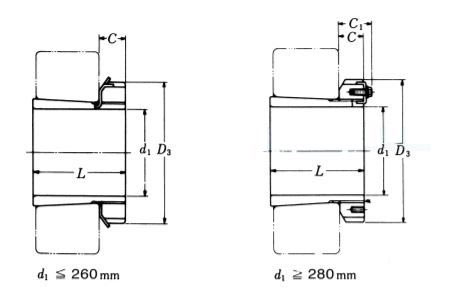

Product Model : H32

Adapter Sleeve No.	d1 mm	L mm	D3 mm	C mm	C²⁾₁ mm	Lock Nut	Lock Plate	Weight kg
H3260	280	240	380	40	53	AN60	AL60	34.100
H3264	300	258	400	42	56	AN64	AL64	39.300
H3268	320	288	440	55	72	AN68	AL68	54.600
H3272	340	299	460	58	75	AN72	AL72	60.200
H3276	360	310	490	60	77	AN76	AL76	69.600
H3280	380	328	520	62	82	AN80	AL80	81.000
H3284	400	352	540	70	90	AN84	AL84	94.000
H3288	410	361	560	70	90	AN88	AL88	118.000
H3292	430	382	580	75	95	AN92	AL92	132.000
H3296	450	397	620	75	95	AN96	AL96	152.000
H32/500	470	428	630	80	100	AN100	AL100	166.000
CS adapter sleeves are supplied completely with lock nuts and lock plates.

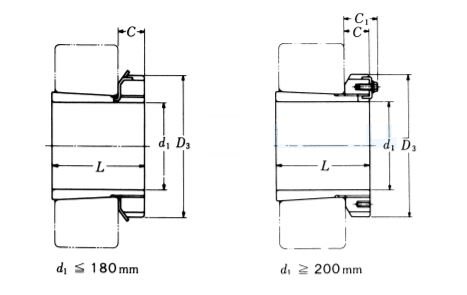

Product Model : H39

Adapter Sleeve No.	d1 mm	L mm	D3 mm	C mm	C²⁾₁ mm	Lock Nut	Lock Washer & Lock Plate	Weight kg
H3936	160	87	210	30	-	ANL36	AWL36	5.700
H3938	170	89	220	31	-	ANL38	AWL38	6.190
H3940	180	98	240	32	-	ANL40	AWL40	7.890
H3944	200	96	260	30	41	ANL44	ALL44	8.160
H3948	220	101	290	34	46	ANL48	ALL48	10.700
H3952	240	116	310	34	46	ANL52	ALL52	12.800
H3956	260	121	330	38	50	ANL56	ALL56	14.800
H3960	280	140	360	42	54	ANL60	ALL60	19.800
H3964	300	140	380	42	55	ANL64	ALL64	21.000
H3968	320	144	400	45	58	ANL64	ALL68	23.500
H3972	340	144	420	45	58	ANL72	ALL72	24.500
H3976	360	164	450	48	62	ANL76	ALL76	31.500
H3980	380	168	470	52	66	ANL80	ALL80	35.000
H3984	400	168	490	52	66	ANL84	ALL84	36.600
H3988	410	189	520	60	77	ANL88	ALL88	57.300
H3992	430	189	540	60	77	ANL92	ALL92	59.900
H3996	450	200	560	60	77	ANL96	ALL96	64.900
H39/500	470	208	580	68	85	ANL100	ALL100	73.100
CS adapter sleeves are supplied completely with lock nuts and lock washers or lock plates.
