Precision Hydraulic Adapter Sleeves by CHIN SING

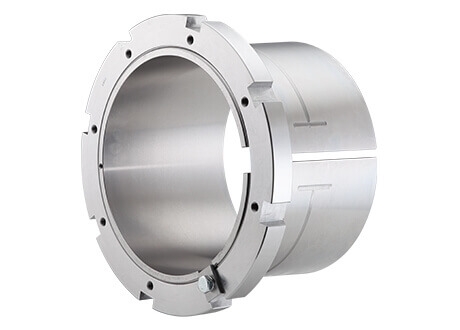

Product Name : Hydraulic Adapter Sleeves

Product Description

HOH23 HOH30 HOH31 HOH32 HOH39 Hydraulic bearing sleeves facilitate mounting on large bearings. An oil pump is required to inject pressurized oil. There are oil passages on the threaded side and grooves on the outer surface which can be filled with internal oil according to requirements. It is convenient for installation and the disassembly of components.

The hydraulic sleeve has the characteristics of prolonging the life of the bearing and protecting the bearing. It can be used in steel construction, cement mining, textile industry, etc. We use high-quality materials to ensure and improve the quality and life cycle of hydraulic bearing sleeves.

Q'ty :

Inquiry

Product Model : HOH23

Hydraulic Adapter Sleeve No.	d1 H mm	L mm	D3 mm	C mm	Ro	e mm	t mm	Lock Nut	Lock Washer & Lock Plate	Weight kg
HOH2332	140	147	210	28	M6	4.2	8	AN32	AW32	9.140
HOH2334	150	154	220	29	M6	4.2	8	AN34	AW34	10.200
HOH2336	160	161	230	30	M6	4.2	8	AN36	AW36	11.300
HOH2338	170	169	240	31	M6	4.2	8	AN38	AW38	12.600
HOH2340	180	176	250	32	M6	4.2	8	AN40	AW40	13.900
HOH2344	200	186	280	35	M6	4.2	8	AN44	AL44	17.700
HOH2348	220	199	300	37	M6	4.2	8	AN48	AL48	20.700
HOH2352	240	211	330	38	M6	4.2	8	AN52	AL52	25.400
HOH2356	260	224	350	39	M6	4.2	8	AN56	AL56	29.100
CS Hydraulic adapter sleeves are supplied completely with lock nuts and lock washers or lock plates.

Product Model : HOH30

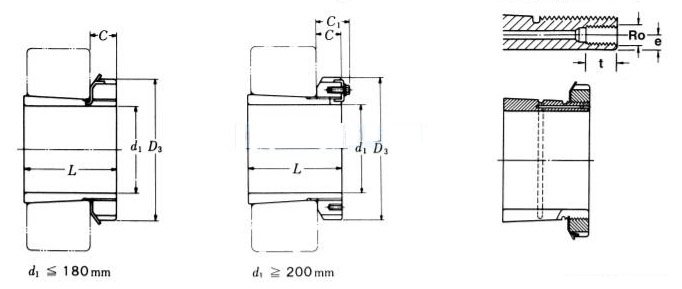

Hydraulic Adapter Sleeve No.	d1 H mm	L mm	D3 mm	C mm	C²⁾₁ mm	Ro	e mm	t mm	Lock Nut	Lock Washer & Lock Plate	Weight kg
HOH3032	140	93	190	28	-	M6	4.2	8	ANL32	AWL32	5.210
HOH3034	150	101	200	29	-	M6	4.2	8	ANL34	AWL34	5.990
HOH3036	160	109	210	30	-	M6	4.2	8	ANL36	AWL36	6.830
HOH3038	170	112	220	31	-	M6	4.2	8	ANL38	AWL38	7.450
HOH3040	180	120	240	32	-	M6	4.2	8	ANL40	AWL40	9.190
HOH3044	200	126	260	30	41	M6	4.2	8	ANL44	ALL44	10.300
HOH3048	220	133	290	34	46	M6	4.2	8	ANL48	ALL48	13.200
HOH3052	240	145	310	34	46	M6	4.2	8	ANL52	ALL52	15.300
HOH3056	260	152	330	38	50	M6	4.2	8	ANL56	ALL56	17.700
HOH3060	280	168	360	42	54	M6	4.2	8	ANL60	ALL60	22.800
HOH3064	300	171	380	42	55	M6	3.5	8	ANL64	ALL64	24.600
HOH3068	320	187	400	45	58	M6	3.5	8	ANL68	ALL68	28.700
HOH3072	340	188	420	45	58	M6	3.5	8	ANL72	ALL72	30.500
HOH3076	360	193	450	48	62	M6	3.5	8	ANL76	ALL76	35.800
HOH3080	380	210	470	52	66	M6	3.5	8	ANL80	ALL80	41.300
HOH3084	400	212	490	52	66	M6	3.5	8	ANL84	ALL84	43.700
HOH3088	410	228	520	60	77	M8	6.5	12	ANL88	ALL88	65.200
HOH3092	430	234	540	60	77	M8	6.5	12	ANL92	ALL92	69.500
HOH3096	450	237	560	60	77	M8	6.5	12	ANL96	ALL96	73.300
HOH30/500	470	247	580	68	85	M8	6.5	12	ANL100	ALL100	81.800
CS Hydraulic adapter sleeves are supplied completely with lock nuts and lock washers or lock plates.

Product Model : HOH31

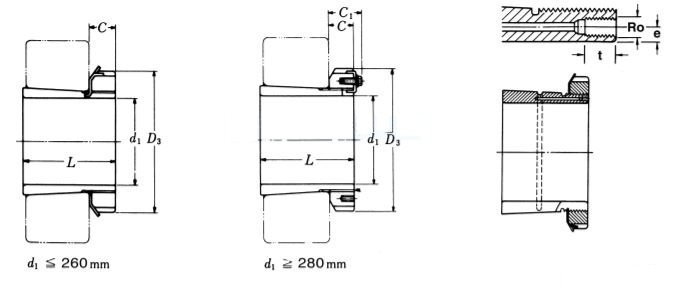

Hydraulic Adapter Sleeve No.	d1 H mm	L mm	D3 mm	C mm	C²⁾₁ mm	Ro	e mm	t mm	Lock Nut	Lock Washer & Lock Plate	Weight kg
HOH3132	140	119	210	28	-	M6	4.2	8	AN32	AW32	7.670
HOH3134	150	122	220	29	-	M6	4.2	8	AN34	AW34	8.380
HOH3136	160	131	230	30	-	M6	4.2	8	AN36	AW36	9.500
HOH3138	170	141	240	31	-	M6	4.2	8	AN38	AW38	10.800
HOH3140	180	150	250	32	-	M6	4.2	8	AN40	AW40	12.100
HOH3144	200	161	280	35	-	M6	4.2	8	AN44	AL44	14.700
HOH3148	220	172	300	37	-	M6	4.2	8	AN48	AL48	18.300
HOH3152	240	190	330	38	-	M6	4.2	8	AN52	AL52	23.200
HOH3156	260	195	350	39	-	M6	4.2	8	AN56	AL56	25.900
HOH3160	280	208	380	40	53	M6	4.2	8	AN60	AL60	30.200
HOH3164	300	226	400	42	56	M6	3.5	8	AN64	AL64	34.900
HOH3168	320	254	440	55	72	M6	3.5	8	AN68	AL68	49.500
HOH3172	340	259	460	58	75	M6	3.5	8	AN72	AL72	54.200
HOH3176	360	264	490	60	77	M6	3.5	8	AN76	AL76	61.700
HOH3180	380	272	520	62	82	M6	3.5	8	AN80	AL80	70.600
HOH3184	400	304	540	70	90	M6	3.5	8	AN84	AL84	84.200
HOH3188	410	307	560	70	90	M8	6.5	12	AN88	AL88	104.000
HOH3192	430	326	580	75	95	M8	6.5	12	AN92	AL92	116.000
HOH3196	450	335	620	75	95	M8	6.5	12	AN96	AL96	133.000
HOH31/500	470	356	630	80	100	M8	6.5	12	AN100	AL100	143.000
CS Hydraulic adapter sleeves are supplied completely with lock nuts and lock washers or lock plates.

Product Model : HOH32

Hydraulic Adapter Sleeve No.	d1 H mm	L mm	D3 mm	C mm	C²⁾₁ mm	Ro	e mm	t mm	Lock Nut	Lock Plate	Weight kg
HOH3260	280	240	380	40	53	M6	4.2	8	AN60	AL60	34.100
HOH3264	300	258	400	42	56	M6	3.5	8	AN64	AL64	39.300
HOH3268	320	288	440	55	72	M6	3.5	8	AN68	AL68	54.600
HOH3272	340	299	460	58	75	M6	3.5	8	AN72	AL72	60.200
HOH3276	360	310	490	60	77	M6	3.5	8	AN76	AL76	69.600
HOH3280	380	328	520	62	82	M6	3.5	8	AN80	AL80	81.000
HOH3284	400	352	540	70	90	M6	3.5	8	AN84	AL84	94.000
HOH3288	410	361	560	70	90	M8	6.5	12	AN88	AL88	118.000
HOH3292	430	382	580	75	95	M8	6.5	12	AN92	AL92	132.000
HOH3296	450	397	620	75	95	M8	6.5	12	AN96	AL96	152.000
HOH32/500	470	428	630	80	100	M8	6.5	12	AN100	AL100	166.000
CS Hydraulic adapter sleeves are supplied completely with lock nuts and lock plates.

Product Model : HOH39

Hydraulic Adapter Sleeve No.	d1 H mm	L mm	D3 mm	C mm	C²⁾₁ mm	Ro	e mm	t mm	Lock Nuts	Lock Washer & Lock Plate	Weight kg
HOH3936	160	87	210	30	-	M6	4.2	8	ANL36	AWL36	5.700
HOH3938	170	89	220	31	-	M6	4.2	8	ANL38	AWL38	6.190
HOH3940	180	98	240	32	-	M6	4.2	8	ANL40	AWL40	7.890
HOH3944	200	96	260	30	41	M6	4.2	8	ANL44	ALL44	8.160
HOH3948	220	101	290	34	46	M6	4.2	8	ANL48	ALL48	10.700
HOH3952	240	116	310	34	46	M6	4.2	8	ANL52	ALL52	12.800
HOH3956	260	121	330	38	50	M6	4.2	8	ANL56	ALL56	14.800
HOH3960	280	140	360	42	54	M6	4.2	8	ANL60	ALL60	19.800
HOH3964	300	140	380	42	55	M6	3.5	8	ANL64	ALL64	21.000
HOH3968	320	144	400	45	58	M6	3.5	8	ANL68	ALL68	23.500
HOH3972	340	144	420	45	58	M6	3.5	8	ANL72	ALL72	24.500
HOH3976	360	164	450	48	62	M6	3.5	8	ANL76	ALL76	31.500
HOH3980	380	168	470	52	66	M6	3.5	8	ANL80	ALL80	35.000
HOH3984	400	168	490	52	66	M6	3.5	8	ANL84	ALL84	36.600
HOH3988	410	189	520	60	77	M8	6.5	12	ANL88	ALL88	57.300
HOH3992	430	189	540	60	77	M8	6.5	12	ANL92	ALL92	59.900
HOH3996	450	200	560	60	77	M8	6.5	12	ANL96	ALL96	64.900
HOH39/500	470	208	580	68	85	M8	6.5	12	ANL100	ALL100	73.100
CS Hydraulic adapter sleeves are supplied completely with lock nuts and lock washers or lock plates.
