Hydraulic Withdrawal Sleeves

Bearing Hydraulic Withdrawal Sleeve | CHIN SING

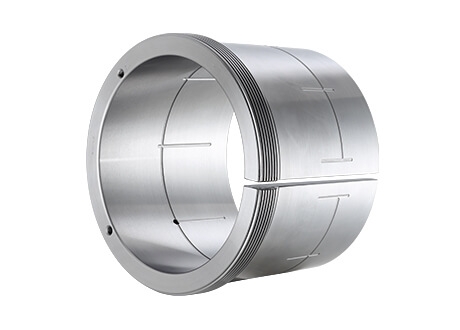

Product Name : Hydraulic Withdrawal Sleeves
Product Description

AOH22 AOH23 AOH30 AOH31 AOH32 AOH39 AOH240 AOH241 Hydraulic Withdrawal Sleeves are mainly used for metric shafts and metric spindle. The hydraulic sleeve is one of the most popular and common sleeve used as industrial sleeves. It can be used to mount bearings and dismount with a tapered bore on the cylindrical seat of stepped shafts. If you need more details about hydraulic sleeves, please contact us!

Inquiry
Product Introduction

Product Model : AOH22

proimages/product/01Adapter_Sleeves/01-04_table/01-04_AOH22-1.png

Taper 1:12

HYDRAULIC d1LL1)1betThread 2)AppropriateWeight
WITHDRAWAL　　　　Ro　　D1Withdrawal　
SLEEVES No.mmmmmmmm　mmmmmmNut No.kg
AOH2236 170 105 110 17 M6 4.5 8 M200*3 AN40 3.730
AOH2238 180 112 117 18 M6 4.5 8 Tr210*4 HN42 4.250
AOH2240 190 118 123 19 M6 4.5 8 Tr220*4 HN44 4.680
AOH2244 200 130 136 20 G 1/8 8.5 12 Tr240*4 HN48 9.100
AOH2248 220 144 150 21 G 1/8 8.5 12 Tr260*4 HN52 11.100
AOH2252 240 155 161 23 G 1/8 8.5 12 Tr290*4 HN58 14.000
AOH2256 260 155 163 24 G 1/8 8.5 12 Tr310*4 HN62 15.200
AOH2260 280 170 178 26 G 1/8 8.5 12 Tr330*4 HN66 18.100
AOH2264 300 180 190 27 G 1/8 8.5 12 Tr350*4 HN70 20.200

◎ Dimension L1 decreases as the Hydraulic withdrawal sleeve is driven in during mounting

◎ M means metric thread. Tr means 30°, trapezoid thread and the digits are outside diameter of thread and pitch.

Product Model : AOH23

proimages/product/01Adapter_Sleeves/01-04_table/01-04_AOH23-1.png

Taper 1:12

HYDRAULIC d1LL1)1betThread 2)AppropriateWeight
WITHDRAWAL　　　　Ro　　D1Withdrawal　
SLEEVES No.mmmmmmmm　mmmmmmNut No.kg
AOH2332 150 140 146 24 M6 4.5 8 M180*3 AN36 4.720
AOH2334 160 146 152 24 M6 4.5 8 M190*3 AN38 5.250
AOH2336 170 154 160 26 M6 4.5 8 M200*3 AN40 5.830
AOH2338 180 160 167 26 M6 4.5 8 Tr210*4 HN42 6.630
AOH2340 190 170 177 30 M6 4.5 8 Tr220*4 HN44 7.540
AOH2344 200 181 189 30 G 1/8 8.5 12 Tr240*4 HN48 13.500
AOH2348 220 189 197 30 G 1/8 8.5 12 Tr260*4 HN52 15.500
AOH2352 240 205 213 30 G 1/8 8.5 12 Tr290*4 HN58 19.600
AOH2356 260 212 220 30 G 1/8 8.5 12 Tr310*5 HN62 21.600

◎ Dimension L1 decreases as the Hydraulic withdrawal sleeve is driven in during mounting

◎ M means metric thread. Tr means 30°, trapezoid thread and the digits are outside diameter of thread and pitch.

Product Model : AOH30

proimages/product/01Adapter_Sleeves/01-04_table/01-04_AOH30-1.png

Taper 1:12

HYDRAULIC d1LL1)1betThread 2)AppropriateWeight
WITHDRAWAL　　　　Ro　　D1Withdrawal　
SLEEVES No.mmmmmmmm　mmmmmmNut No.kg
AOH3032 150 77 82 16 M6 4.2 8 M170*3 AN34 2.060
AOH3034 160 85 90 17 M6 4.2 8 M180*3 AN36 2.430
AOH3036 170 92 98 17 M6 4.2 8 M190*3 AN38 2.810
AOH3038 180 96 102 18 M6 4.2 8 Tr205*4 HNL41 3.320
AOH3040 190 102 108 19 M6 4.2 8 Tr215*4 HNL43 3.800
AOH3044 200 111 117 20 G 1/8 8.5 12 Tr235*4 HNL47 7.400
AOH3048 220 116 123 21 G 1/8 8.5 12 Tr260*4 HNL52 8.750
AOH3052 240 128 135 23 G 1/8 8.5 12 Tr280*4 HNL56 10.700
AOH3056 260 131 139 24 G 1/8 8.5 12 Tr300*4 HNL60 12.000
AOH3060 280 145 153 26 G 1/8 8.5 12 Tr320*5 HNL64 14.400
AOH3064 300 149 157 27 G 1/8 8.5 12 Tr345*5 HNL69 16.000
AOH3068 320 162 171 28 G 1/8 8.5 12 Tr365*5 HNL73 19.500
AOH3072 340 167 176 30 G 1/8 8.5 12 Tr385*5 HNL77 21.000
AOH3076 360 170 180 31 G 1/8 8.5 12 Tr410*5 HNL82 23.200
AOH3080 380 183 193 33 G 1/8 8.5 12 Tr430*5 HNL86 27.300
AOH3084 400 186 196 34 G 1/8 8.5 12 Tr450*5 HNL90 29.000
AOH3088 420 194 205 35 G 1/8 8.5 12 Tr470*5 HNL94 32.000
AOH3092 440 202 213 37 G 1/8 8.5 12 Tr490*5 HNL98 35.200
AOH3096 460 205 217 38 G 1/8 8.5 12 Tr520*6 HNL104 39.200
AOH30/500 480 209 221 40 G 1/8 8.5 12 Tr540*6 HNL108 42.500

◎ Dimension L1 decreases as the Hydraulic withdrawal sleeve is driven in during mounting

◎ M means metric thread. Tr means 30°, trapezoid thread and the digits are outside diameter of thread and pitch.

Product Model : AOH31

proimages/product/01Adapter_Sleeves/01-04_table/01-04_AOH31-1.png

Taper 1:12

HYDRAULIC d1LL1)1betThread 2)AppropriateWeight
WITHDRAWAL　　　　Ro　　D1Withdrawal　
SLEEVES No.mmmmmmmm　mmmmmmNut No.kg
AOH3132 150 103 108 16 M6 4.5 8 M180*3 AN36 3.210
AOH3134 160 104 109 16 M6 4.5 8 M190*3 AN38 3.400
AOH3136 170 116 122 19 M6 4.5 8 M200*3 AN40 4.220
AOH3138 180 125 131 20 M6 4.5 8 Tr210*4 HN42 4.890
AOH3140 190 134 140 21 M6 4.5 8 Tr220*4 HN44 5.490
AOH3144 200 145 151 23 G 1/8 8.5 12 Tr240*4 HN48 10.400
AOH3148 220 154 161 25 G 1/8 8.5 12 Tr260*4 HN52 12.000
AOH3152 240 172 179 26 G 1/8 8.5 12 Tr290*4 HN58 16.200
AOH3156 260 175 183 28 G 1/8 8.5 12 Tr310*5 HN62 17.500
AOH3160 280 192 200 30 G 1/8 8.5 12 Tr330*5 HN66 20.800
AOH3164 300 209 217 31 G 1/8 8.5 12 Tr350*5 HN70 24.500
AOH3168 320 225 234 33 G 1/8 8.5 12 Tr370*5 HN74 29.000
AOH3172 340 229 238 35 G 1/8 8.5 12 Tr400*5 HN80 33.000
AOH3176 360 232 242 36 G 1/8 8.5 12 Tr420*5 HN84 35.700
AOH3180 380 240 250 38 G 1/8 8.5 12 Tr440*5 HN88 39.500
AOH3184 400 266 276 40 G 1/8 8.5 12 Tr460*5 HN92 46.500
AOH3188 420 270 281 42 G 1/8 8.5 12 Tr480*5 HN96 49.800
AOH3192 440 285 296 43 G 1/8 8.5 12 Tr510*6 HN102 57.900
AOH3196 460 295 307 45 G 1/8 8.5 12 Tr530*6 HN106 63.100
AOH 31/500 480 313 325 47 G 1/8 8.5 12 Tr550*6 HN110 70.900

◎ Dimension L1 decreases as the Hydraulic withdrawal sleeve is driven in during mounting

◎ M means metric thread. Tr means 30°, trapezoid thread and the digits are outside diameter of thread and pitch.

Product Model : AOH32

proimages/product/01Adapter_Sleeves/01-04_table/01-04_AOH31-1.png

Taper 1:12

HYDRAULIC d1LL1)1betThread 2)AppropriateWeight
WITHDRAWAL　　　　Ro　　D1Withdrawal　
SLEEVES No.mmmmmmmm　mmmmmmNut No.kg
AOH3232 150 124 130 20 M6 4.5 8 M180*3 AN36 4.080
AOH3234 160 134 140 24 M6 4.5 8 M190*3 AN38 4.800
AOH3236 170 140 146 24 M6 4.5 8 M200*3 AN40 5.320
AOH3238 180 145 152 25 M6 4.5 8 Tr210*4 HN42 5.900
AOH3240 190 153 160 25 M6 4.5 8 Tr220*4 HN44 6.680
AOH3260 280 228 236 34 G 1/8 8.5 12 Tr330*5 HN66 26.000
AOH3264 300 246 254 36 G 1/8 8.5 12 Tr350*5 HN70 30.600
AOH3268 320 264 273 38 G 1/8 8.5 12 Tr370*5 HN74 35.800
AOH3272 340 274 283 40 G 1/8 8.5 12 Tr400*5 HN80 41.600
AOH3276 360 284 294 42 G 1/8 8.5 12 Tr420*5 HN84 46.300
AOH3280 380 302 312 44 G 1/8 8.5 12 Tr440*5 HN88 52.500
AOH3284 400 321 331 46 G 1/8 8.5 12 Tr460*5 HN92 59.700
AOH3288 420 330 341 48 G 1/8 8.5 12 Tr480*5 HN96 64.800
AOH3292 440 349 360 50 G 1/8 8.5 12 Tr510*6 HN102 75.200
AOH3296 460 364 376 52 G 1/8 8.5 12 Tr530*6 HN106 83.100
AOH32/500 480 393 405 54 G 1/8 8.5 12 Tr550*6 HN110 94.700

◎ Dimension L1 decreases as the Hydraulic withdrawal sleeve is driven in during mounting

◎ M means metric thread. Tr means 30°, trapezoid thread and the digits are outside diameter of thread and pitch.

Product Model : AOH39

proimages/product/01Adapter_Sleeves/01-04_table/01-04_AOH39-1.png

Taper 1:12

HYDRAULIC d1LL1)1betThread 2)AppropriateWeight
WITHDRAWAL　　　　Ro　　D1Withdrawal　
SLEEVES No.mmmmmmmm　mmmmmmNut No.kg
AOH3944 200 77 83 16 M8 7.5 12 Tr230*4 HN46 4.830
AOH3948 220 77 83 16 M8 7.5 12 Tr250*4 HN50 5.290
AOH3952 240 94 100 18 M8 7.5 12 Tr270*4 HN54 7.060
AOH3956 260 94 100 18 M8 7.5 12 Tr290*4 HN58 7.070
AOH3960 280 112 119 21 M8 7.5 12 Tr310*5 HN62 10.100
AOH3964 300 112 119 21 M8 7.5 12 Tr330*5 HN66 10.800
AOH3968 320 112 119 21 M8 7.5 12 Tr360*5 HNL72 12.400
AOH3972 340 112 119 21 M8 7.5 12 Tr380*5 HNL76 13.100
AOH3976 360 130 138 22 M8 7.5 12 Tr400*5 HNL80 15.900
AOH3980 380 130 138 22 M8 7.5 12 Tr420*5 HNL84 17.200
AOH3984 400 130 138 22 M8 7.5 12 Tr440*5 HNL88 18.100
AOH3988 420 145 153 25 G 1/8 8.5 12 Tr460*5 HNL92 21.500
AOH3992 440 145 153 25 G 1/8 8.5 12 Tr480*5 HNL96 22.500
AOH3996 460 158 167 28 G 1/8 8.5 12 Tr500*5 HNL100 26.000
AOH39/500 480 162 172 32 G 1/8 8.5 12 Tr520*6 HNL104 27.700

◎ Dimension L1 decreases as the Hydraulic withdrawal sleeve is driven in during mounting

◎ M means metric thread. Tr means 30°, trapezoid thread and the digits are outside diameter of thread and pitch.

Product Model : AOH240

proimages/product/01Adapter_Sleeves/01-04_table/01-04_AOH240-1.png

Taper 1:12

HYDRAULIC d1LL1)1betThread 2)AppropriateWeight
WITHDRAWAL　　　　Ro　　D1Withdrawal　
SLEEVES No.mmmmmmmm　mmmmmmNut No.kg
AOH24044 200 138 152 20 M6 8 8 Tr230*4 HN46 8.250
AOH24048 220 138 153 20 M6 8 8 Tr250*4 HN50 9.000
AOH24052 240 162 178 22 M6 8 8 Tr270*4 HN54 11.800
AOH24056 260 162 179 22 M6 8 8 Tr290*4 HN58 12.800
AOH24060 280 184 202 24 M6 8 8 Tr310*5 HN62 15.500
AOH24064 300 184 202 24 M6 8 8 Tr330*5 HN66 16.600
AOH24068 320 206 225 26 G 1/8 8.5 12 Tr360*5 HNL72 21.700
AOH24072 340 206 226 26 G 1/8 8.5 12 Tr380*5 HNL76 22.700
AOH24076 360 208 228 28 G 1/8 8.5 12 Tr400*5 HNL80 23.700
AOH24080 380 228 248 28 G 1/8 8.5 12 Tr420*5 HNL84 27.100
AOH24084 400 230 252 30 G 1/8 8.5 12 Tr440*5 HNL88 29.000
AOH24088 420 242 264 30 G 1/8 8.5 12 Tr460*5 HNL92 31.900
AOH24092 440 250 273 32 G 1/8 8.5 12 Tr480*5 HNL96 34.700
AOH24096 460 250 273 32 G 1/8 8.5 12 Tr500*5 HNL100 36.600
AOH240/500 480 253 276 35 G 1/8 8.5 12 Tr530*6 HNL106 43.900

◎ Dimension L1 decreases as the Hydraulic withdrawal sleeve is driven in during mounting

◎ M means metric thread. Tr means 30°, trapezoid thread and the digits are outside diameter of thread and pitch.

Product Model : AOH241

proimages/product/01Adapter_Sleeves/01-04_table/01-04_AOH241-1.png

Taper 1:12

HYDRAULIC d1LL1)1betThread 2)AppropriateWeight
WITHDRAWAL　　　　Ro　　D1Withdrawal　
SLEEVES No.mmmmmmmm　mmmmmmNut No.kg
AOH24144 200 170 184 20 M6 8 8 Tr230*4 HN46 10.200
AOH24148 220 180 195 20 G 1/8 8.5 12 Tr260*4 HN52 12.500
AOH24152 240 202 218 22 G 1/8 8.5 12 Tr280*4 HN56 15.400
AOH24156 260 202 219 22 G 1/8 8.5 12 Tr300*4 HN60 16.300
AOH24160 280 224 242 24 G 1/8 8.5 12 Tr320*5 HN64 19.500
AOH24164 300 242 260 24 G 1/8 8.5 12 Tr340*5 HN68 21.400
AOH24168 320 269 288 26 G 1/8 8.5 12 Tr360*5 HN72 27.100
AOH24172 340 269 289 26 G 1/8 8.5 12 Tr380*5 HN76 29.600
AOH24176 360 271 291 28 G 1/8 8.5 12 Tr400*5 HN80 31.300
AOH24180 380 278 298 28 G 1/8 8.5 12 Tr420*5 HN84 34.400
AOH24184 400 310 332 30 G 1/8 8.5 12 Tr440*5 HN88 40.300
AOH24188 420 310 332 30 G 1/8 8.5 12 Tr460*5 HN92 42.300
AOH24192 440 332 355 32 G 1/8 8.5 12 Tr480*5 HN96 47.600
AOH24196 460 343 368 35 G 1/8 8.5 12 Tr500*5 HN100 52.700
AOH241/500 480 362 387 37 G 1/8 8.5 12 Tr530*6 HN104 59.100

◎ Dimension L1 decreases as the Hydraulic withdrawal sleeve is driven in during mounting

◎ M means metric thread. Tr means 30°, trapezoid thread and the digits are outside diameter of thread and pitch.
