Inch Lock Nuts

Inch Bearing Locking Nuts | CHIN SING
Product Name : Inch Lock Nuts
Product Description

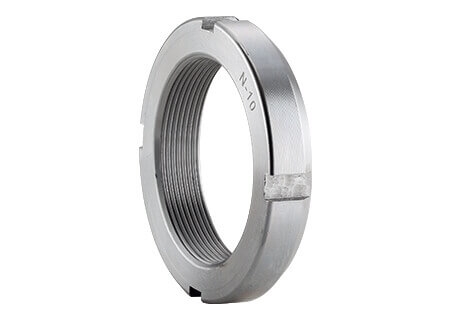

Inch Bearing Lock Nuts N00~N44/TN065-TAN140

Professional and well-experienced manufacturer of Inch Bearing Lock Nuts with “CS” Brand, We are the finest quality Inch Bearing Lock Nuts manufacturer and a famous Inch Bearing Lock Nuts exporter in Taiwan, supplying Inch Bearing Lock Nuts to all over the world. Inch Bearing Lock Nuts agent, Inch Bearing Lock Nuts importer are wanted.

Inch Bearing Lock Nuts -N00~N44/TN065-TAN140 series

Inquiry
Product Introduction

Product Model : N-00

TABLE 4.1-PART2

LOCK NUTS DIMENSIONS

Inch Design

proimages/product/03SNP_SNW/03-02_N-00.jpg

Dimensions in inches

Locknuts No.ThreadsOutside Dia.Face Dia.Nut Width D max.Solt WidthDepth
Major Dia. d nom.No. per inch K1C maxE max.N-00TN-00G min.H max.
N-00 0.391 32 0.755 0.625 0.229   0.120 0.073
N-01 0.469 32 0.880 0.719 0.323   0.120 0.073
N-02 0.586 32 1.005 0.813 0.323   0.120 0.104
N-03 0.664 32 1.130 0.938 0.354   0.120 0.104
N-04 0.781 32 1.380 1.125 0.385   0.178 0.104
N-05 0.969 32 1.568 1.281 0.416   0.178 0.104
N-06 1.173 18 1.755 1.500 0.416   0.178 0.104
TN-065 1.312 18 2.068 1.813 -- 0.448 0.178 0.104
N-07 TN-07 1.376 18 2.068 1.813 0.448 0.448 0.178 0.104
N-08 TN-08 1.563 18 2.255 2.000 0.448 0.448 0.240 0.104
N-09 TN-09 1.767 18 2.536 2.281 0.448 0.448 0.240 0.104
N-10 TN-10 1.967 18 2.693 2.438 0.510 0.510 0.240 0.104
N-11 TN-11 2.157 18 2.974 2.656 0.510 0.510 0.240 0.135
N-12 TN-12 2.360 18 3.161 2.844 0.541 0.541 0.240 0.135
N-13 TN-13 2.548 18 3.380 3.063 0.573 0.573 0.240 0.135
N-14 TN-14 2.751 18 3.630 3.313 0.573 0.573 0.240 0.135
AN-15 TAN-15 2.933 12 3.880 3.563 0.604 0.604 0.360 0.135
AN-16 TAN-16 3.137 12 4.161 3.844 0.604 0.604 0.360 0.135
AN-17 TAN-17 3.340 12 4.411 4.031 0.635 0.635 0.360 0.166
AN-18 TAN-18 3.527 12 4.661 4.281 0.698 0.698 0.360 0.166
AN-19 TAN-19 3.730 12 4.943 4.563 0.729 0.729 0.360 0.166
AN-20 TAN-20 3.918 12 5.193 4.813 0.760 0.760 0.360 0.166
AN-21 TAN-21 4.122 12 5.443 5.000 0.760 0.760 0.485 0.198
AN-22 TAN-22 4.325 12 5.724 5.281 0.791 0.791 0.485 0.198
AN-24 TAN-24 4.716 12 6.130 5.688 0.823 0.823 0.485 0.198
AN-26 TAN-26 5.106 12 6.755 6.188 0.885 0.885 0.610 0.260
AN-28 TAN-128 5.497 12 7.099 6.531 0.948 1.198 0.610 0.260
AN-30 TAN-130 5.888 12 7.693 7.063 0.979 1.260 0.610 0.291
AN-32 TAN-132 6.284 8 8.068 7.438 1.041 1.291 0.610 0.291
AN-34 TAN-134 6.659 8 8.661 8.031 1.073 1.354 0.610 0.291
AN-36 TAN-136 7.066 8 9.068 8.375 1.104 1.416 0.735 0.323
AN-38 TAN-138 7.472 8 9.474 8.781 1.135 1.416 0.735 0.323
AN-40 TAN-140 7.847 8 9.849 9.156 1.198 1.510 0.735 0.323
N-44 8.628 8 11.005 9.843 1.260   0.980 0.510
