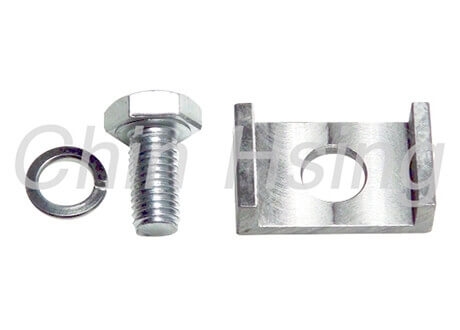

Metric lock plates

Metric Lock Plates
Product Name : Metric lock plates
Product Description

As an experienced manufacturer of "CS" brand metric lock plates, our metric lock plate devices are designed to let lager Locknuts from nuts 44 up to 100 be fixed.

  • Metric lock plates-AL44-AL100
  • Metric lock plates-ALL44-ALL100

Our lock plates are produced through wire-cut electrical discharge machining (EDM). By using wire-cut EDM machines, we can manufacture even the most complex precision components at a relatively low cost and with a fast production rate while maintaining high precision and repeatability. It helps bearing locknut, particularly for large sizes to prevent them from loosening.

Inquiry
Product Introduction

Product Model : AL
proimages/product/01Adapter_Sleeves/01-07_AL.jpg

Lock Plates No.t1
mm		S
mm		L2
mm		S1
mm		i
mm		L3
mm		Suitble Locknuts No.Weight per 100 pieces
kg
AL44 4 20 12 9 22.5 30.5 AN44 2.600
AL48 4 20 12 9 22.5 30.5 AN48 2.600
AL52 4 24 12 12 25.5 33.5 AN52 3.390
AL56 4 24 12 12 25.5 33.5 AN56 3.390
AL60 4 24 12 12 30.5 38.5 AN60 3.790
AL64 5 24 15 12 31 41 AN64 5.350
AL68 5 28 15 14 38 48 AN68 6.650
AL72 5 28 15 14 38 48 AN72 6.650
AL76 5 32 15 14 40 50 AN76 7.960
AL80 5 32 15 18 45 55 AN80 8.200
AL84 5 32 15 18 45 55 AN84 8.200
AL88 5 36 15 18 43 53 AN88 9.000
AL92 5 36 15 18 43 53 AN92 9.000
AL96 5 36 15 18 53 63 AN96 10.400
AL100 5 40 15 18 45 55 AN100 10.500
  • NOTE: The specifications of AL can be applied for MS31.

Product Model : ALL
proimages/product/01Adapter_Sleeves/01-07_AL.jpg

Lock Plates No.t1
mm		S
mm		L2
mm		S1
mm		i
mm		L3
mm		Suitble Locknuts No.Weight per 100 pieces
kg
ALL44 4 20 12 7 13.5 21.5 ANL44 2.120
ALL48 4 20 12 9 17.5 25.5 ANL48 2.290
ALL52 4 20 12 9 17.5 25.5 ANL52 2.290
ALL56 4 24 12 9 17.5 25.5 ANL56 2.920
ALL60 4 24 12 9 20.5 28.5 ANL60 3.160
ALL64 5 24 15 9 21 31 ANL64 4.560
ALL68 5 24 15 9 21 31 ANL68 4.560
ALL72 5 28 15 9 20 30 ANL72 5.030
ALL76 5 28 15 12 24 34 ANL76 5.280
ALL80 5 28 15 12 24 34 ANL80 5.280
ALL84 5 32 15 12 24 34 ANL84 6.110
ALL88 5 32 15 14 28 38 ANL88 6.450
ALL92 5 32 15 14 28 38 ANL92 6.450
ALL96 5 36 15 14 28 38 ANL96 7.290
ALL100 5 36 15 14 28 38 ANL100 7.290
  • NOTE: The specifications of ALL can be applied for MS30.
