Product Name : Self-Lubricating Linear Guide (Flanged,Extended length)

Product Description

Linear Guide

Linear guide is designed to support the movement and load of the equipment in a linear way, either vertically or horizontally. Linear guides are used in a wide range of industrial and manufacturing applications. For example, you will commonly see linear guides of different sizes and styles used in CNC machines and 3D printers, including in smaller home printers and larger 3D industrial printers. If you need a system which requires high precision, high rigidity, and long life, a linear guide is the perfect solution.

Material: High Carbon Steel with Medium Frequency Induction Treatment Hardness: HRC58-62

Q'ty :

Inquiry

Product Introduction

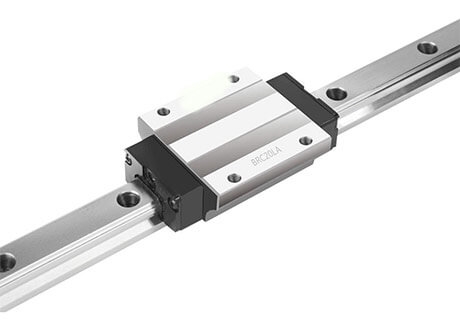

Flanged block-extended length

Characteristics:

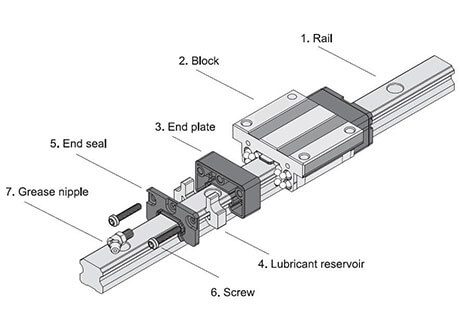

BR lubrication reservoir kit (patent).
Equivalent load capacities in four directions.
Smooth running due to new ball-circulation.
High rigidity-4-row angular contact.
International standard dimension.
High accuracy and low friction.
High speed, low noise.
Integral all-round sealing.
Interchangeability.
Green production.
Long operating life with long-term automatic maintenance of lubricating oil film protection on the rail.

Maintenance and Usage:

Linear Guide products will be rust-proofed before shipment. Therefore, before using this product, please clean the anti- rust oil first. And then please fill in with lubricant oil immediately.
Linear Guide was equipped with self-lubricating system (may be different all depends on the model No) which greatly saves the lubricants cost as well as reducing the maintenance frequency. Please check the operating conditions regularly. If there is no oil film on the surface of the rails, please fill in the lubricants immediately.
Do not disassemble the block by yourself, please avoid foreign matter enter the block, which may affect the accuracy and shorten the service life.
Do not use at the environment higher than 80 degrees Celsius, it may damage the seals of the product and shorten the service life.

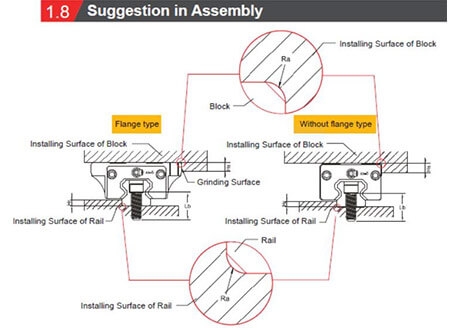

Interchangeability Notice:

Check the assembly height (H)
Check the assembly width (W2)
Check the block length (L)
Check the block length (L1)
Check the hole quantity and pitches on the block (B x J)
Check the rail width (W1)
Check the pitch of the rail (F)
Check the hole diameter and rail size (d x D x h)
Please advise the (G) value in you order
Check the (E) value to avoid the block grinding the surface of the machine

Product Model : Flanged block, extended length

Item No.	Assembly				Block							Rail
	mm				mm							mm
	H	W	W2	E	L	BxJ	MQxℓ	L1	Oil hole	T1	(N)	W1	H1	F	dxDxh
BRC15A0	24	47	16	4.6	66	38x30	M5x8	40	Ø3	4.3	5	15	14	60	4.5x7.5x5.8
BRD15A0	24	47	16	4.6	56	38x30	M5x8	40	Ø3	4.3	5	15	14	60	4.5x7.5x5.8
BRC20A0	30	63	21.5	5	77.8	53x40	M6x9	48.8	M6x1	7	15.6	20	18	60	6x9.5x9
BRD20A0					67.8			48.8
BRC20LA					92.4			63.4
BRD20LA					82.4			63.4
BRC25A0	36	70	23.5	7	88	57x45	M8x12	57	M6x1	7.8	15.6	23	22	60	7x11x9.5
BRD25A0					78			57
BRC25LA					110.1			79.1
BRD25LA					100.1			79.1
BRC30A0	42	90	31	9	109	72x52	M10x12	72	M6x1	7	15.6	28	26	80	9x14x12.5
BRD30A0					99			72
BRC30LA					131.3			94.3
BRD30LA					121.3			94.3
BRD35A0	48	100	33	9.5	109	82x62	M10x13	80	M6x1	8	15.6	34	29	80	9x14x12.5
BRD35LA	48	100	33	9.5	134.8	82x62	M10x13	105.8	M6x1	8	15.6	34	29	80	9x14x12.5
BRD45A0	60	120	37.5	14	138.2	100x80	M12x15	105	M8x1	8.5	16	45	38	105	14x20x17.5
BRD45LA	60	120	37.5	14	163	100x80	M12x15	129.8	M8x1	8.5	16	45	38	105	14x20x17.5

Item No.	Dimension(mm)		Basic Load Rating(Kgf)		Static Moment(Kgf*m)			Weight
	Dimension(mm)		Basic Load Rating(Kgf)		Static Moment(Kgf*m)			Weight
	Lmax	G	C	CO	Mx	My	Mz	Block(Kg)	Rail(Kg/m)
BRC15A0	4000	20	850	1350	10.1	6.8	6.8	0.21	1.4
BRD15A0	4000	20	850	1350	10.1	6.8	6.8	0.21	1.4
BRC20A0	4000	20	1400	2400	24	14.6	14.6	0.4	2.6
BRD20A0			1400	2400	24	14.6	14.6	0.4
BRC20LA			1650	3000	30	23.8	23.8	0.52
BRD20LA			1650	3000	30	23.8	23.8	0.52
BRC25A0	4000	20	1950	3200	36.8	22.8	22.8	0.57	3.6
BRD25A0			1950	3200	36.8	22.8	22.8	0.57
BRC25LA			2600	4600	52.9	45.5	45.5	0.72
BRD25LA			2600	4600	52.9	45.5	45.5	0.72
BRC30A0	4000	20	2850	4800	67.2	43.2	43.2	1.1	5.2
BRD30A0			2850	4800	67.2	43.2	43.2	1.1
BRC30LA			3600	6400	89.6	75.4	75.4	1.4
BRD30LA			3600	6400	89.6	75.4	75.4	1.4
BRD35A0	4000	20	3850	6200	105.4	62	62	1.6	7.2
BRD35LA	4000	20	4800	8300	141.1	109.8	109.8	2	7.2
BRD45A0	4000	22.5	6500	10500	236.3	137.8	137.8	2.7	12.3
BRD45LA	4000	22.5	7700	13000	292.5	210.9	210.9	3.6	12.3
