Brass Bushing SPF

SPF - Self Lubricating Brass Bushings
SPF - Self Lubricating Brass Bushings
Product Name : Brass Bushing SPF
Product Description

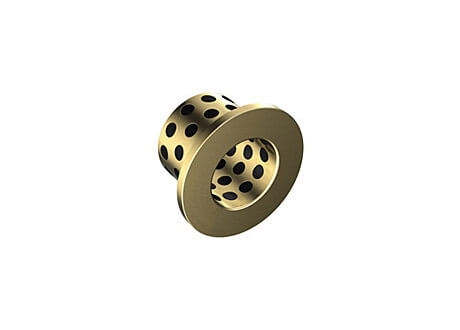

Self-lubricated Brass Alloy Bushings SPF

Brass alloy with embedded solid lubricant bushing is to open cavities of appropriate size and orderly arrangement on the metal friction surface of the bushing matrix. It was embedded a molded solid lubricant with unique self-lubricating properties in the cavities (the solid lubricant area is generally 25% -35% of the friction area) and made of self-lubricating bushings.

It has been used in metallurgy of continuous casting machine, rolling equipment, mining machinery, shipbuilding, gas turbines and other high temperature, high load, low speed heavy load and other occasions.

Item No: SPF- XX   XX
                         ID Length
Inquiry
Product Introduction

Material: High Tensile Brass Alloy + Graphite Solid Lubricant Embedded

Features:
  1. May work without any oil for a long period.
  2. Extremely high load capacity, good anti-wear and lower friction
  3. Particularly appropriate for low speed and high load.
  4. Suitable for reciprocating, oscillating or intermittent motion where oil film is hard to be formed.
  5. Good chemical resistant and anti-corrosion characteristics.
  6. Can be used in wide range of temperature from -40℃-+300℃.
  7. Low maintenance frequency.
Technical Data
Material CuZn24AL6
Hardness HB230-270
Coefficient of friction(μ) <0.16
Max. Temp. 300℃
Max. dynamic load 100 N/mm²
Max. speed(Dry) 0.4 m/s
Max. speed (Lubrication) 5 m/s
PV limit 3.8 N/mm² *m/s
Chemical Compositions
Chemical Compositions %
Cu Zn Al Fe Mn Si Ni Sn Pb
64.24 25.10 5.17 2.67 2.82 <0.1 <0.5 <0.2 <0.2

Product Model : SPF

  • Self-lubricated Brass Alloy Bushings #500SP (SPF) can be used in rotation, swing and reciprocating motion.
  • Attention: There is no solid lubricant on the flange.
  • Please avoid using in water.
  • The inner diameter of 31.5mm is in the middle of the hydraulic cylinder trunnion bushing.
  • Item No: SPF- XX   XX
                             ID Length
Shaft DiameterDimension (mm)Length (Tolerance )IDOD
IDODFlange10152025303540506067.580100
ØdTOLØDTOLØFThicknessTOLSPFSPFSPFSPFSPFSPFSPFSPFSPFSPFSPFSPF
10 10 +0.04 14 +0.034 22 2 0 -1010 -1015 -1020 　 　 　 　 　 　 　 　 　 10 14
+0.025 +0.023 -0.1 　 　
12 12 +0.05 18 +0.034 25 3 " -1210 -1215 -1220 -1225 -1230 　 　 　 　 　 　 　 12 18
+0.032 +0.023 　 　
13 13 +0.05 19 +0.041 26 3 " 　 -1315 -1320 　 　 　 　 　 　 　 　 　 13 19
+0.032 +0.028 　 　 　
14 14 +0.05 20 +0.041 27 3 " 　 -1415 -1420 -1425 　 　 　 　 　 　 　 　 14 20
+0.032 +0.028 　 　
15 15 +0.05 21 +0.041 28 3 " -1510 -1515 -1520 -1525 -1530 　 　 　 　 　 　 　 15 21
+0.032 +0.028 　 　
16 16 +0.05 22 +0.041 29 3 " 　 -1615 -1620 -1625 -1630 -1635 -1640 　 　 　 　 　 16 22
+0.032 +0.028 　 　
20 20 +0.061 30 +0.041 40 5 " 　 -2015 -2020 -2025 -2030 　 -2040 　 　 　 　 　 20 30
+0.04 +0.028 　 　
25 25 +0.061 35 +0.05 45 5 " 　 -2515 -2520 -2525 -2530 -2535 -2540 -2550 　 　 　 　 25 35
+0.04 +0.034 　 　
30 30 +0.061 40 +0.05 50 5 " 　 　 -3020 -3025 -3030 -3035 -3040 -3050 　 　 　 　 30 40
+0.04 +0.034 　 　
31.5 31.5 +0.075 40 +0.05 50 5 " 　 　 -3120 　 -3130 -3135 -3140 　 　 　 　   31.5 40
+0.05 +0.034 　 　 　 　
35 35 +0.075 45 +0.05 60 5 " 　 　 -3520 -3525 -3530 -3535 -3540 -3550 　 　 　 　 35 45
+0.05 +0.034 　 　
40 40 +0.075 50 +0.05 65 5 " 　 　 -4020 -4025 -4030 -4035 -4040 -4050 　 　 　 　 40 50
+0.05 +0.034 　 　
45 45 +0.075 55 +0.073 70 5 " 　 　 　 　 -4530 -4535 -4540 -4550 -4560 　 　 　 45 55
+0.05 +0.041 　 　 　 　
50 50 +0.075 60 +0.073 75 5 " 　 　 　 　 -5030 -5035 -5040 -5050 -5060 　 　 　 50 60
+0.05 +0.041 　 　 　 　
55 55 +0.09 65 +0.073 80 5 " 　 　 　 　 　 　 -5540 　 -5560 　 　 　 55 65
+0.06 +0.041 　 　 　 　 　 　
60 60 +0.09 75 +0.062 90 7.5 " 　 　 　 　 　 　 -6040 -6050 -6060 　 -6080 　 60 75
+0.06 +0.043 　 　 　 　
63 63 +0.09 75 +0.062 85 7.5 " 　 　 　 　 　 　 　 　 　 -6367 　 　 63 75
+0.06 +0.043 　 　 　 　 　 　
70 70 +0.09 85 +0.083 105 7.5 " 　 　 　 　 　 　 　 -7050 　 　 -7080 　 70 85
+0.06 +0.051 　 　 　 　 　 　
75 75 +0.09 90 +0.083 110 7.5 " 　 　 　 　 　 　 　 　 -7560 　 　 　 75 90
+0.06 +0.051 　 　 　 　 　 　
80 80 +0.09 100 +0.083 120 10 " 　 　 　 　 　 　 　 　 -8060 　 -8080 -80100 80 100
+0.06 +0.051 　 　 　 　 　 　
90 90 +0.107 110 +0.076 130 10 " 　 　 　 　 　 　 　 　 -9060 　 -9080 　 90 110
+0.072 +0.054 　 　 　 　 　 　
100 100 +0.107 120 +0.076 150 10 " 　 　 　 　 　 　 　 　 　 　 -10080 -100100 100 120
+0.072 +0.054 　 　 　 　 　 　 　
120 120 +0.107 140 +0.088 170 10 " 　 　 　 　 　 　 　 　 　 　 -12080 -120100 120 140
+0.072 +0.063 　 　 　 　 　 　 　
