SNW/SNP Adapter Sleeves

SNW/SNP Adapter Sleeves
Product Name : SNW/SNP Adapter Sleeves
Product Description

S04-S52, S3024-S30/950

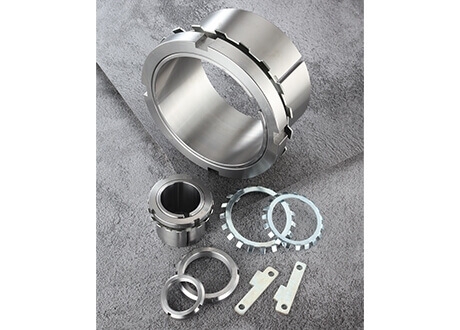

SNW/SNP US Size Adapter Sleeves are with dimensions in accordance with AISI standard, with lock nuts and lock washer or lock plate. Chin Sing SNW/SNP series products include US size adapter sleeves, inch lock nuts, inch lock washer, and inch lock plate.

Chin Sing provides bearing sleeves that can reach longitude 1:12/ 2°23°9'4, density 7.85g/mm, hardness HRB standard, SNW/SNP series sleeves conform to American standards. If you have American production requirements, Chin Sing is able to comply with U.S. production. Please visit our product description page to learn more about our SNW/SNP series standard sleeves.

Inquiry
Product Introduction

Product Model : S-00

                                                     proimages/product/03SNP_SNW/03-01_S-00_drawing.jpg
 Dimensions in inches
Sleeve NumberBore Diameter
d max		Diameter to
Sharp Corner
A min		Length
L min		ThreadsSlot Width
F min		ReliefLockplate Slot
Major Diameter
B max		No.
per Inch K1		G
max		J
max		H
min		Width
P min		Depth
T min
      S00 S100 S00 S100
S-04 S-104 0.692 0.855 0.875 1.224 1.460 0.781 32 0.531 0.240
S-05 S-105 0.754 1.052 1.082 1.259 1.617 0.969 32 0.570 0.240
S-06 S-106 0.942 1.256 1.292 1.343 1.779 1.173 18 0.632 0.240
S-07 S-107 1.192 1.459 1.499 1.449 1.922 1.376 18 0.664 0.240
S-08 S-108 1.317 1.659 1.702 1.494 2.005 1.563 18 0.672 0.365
S-09 S-109 1.442 1.863 1.909 1.574 2.123 1.767 18 0.672 0.365 0.125  0.062
S-10 S-110 1.692 2.070 2.122 1.755 2.384 1.967 18 0.734 0.365
S-11 S-111 1.942 2.273 2.329 1.835 2.506 2.157 18 0.739 0.365
S-12 S-112 2.067 2.480 2.535 1.979 2.649 2.360 18 0.770 0.365
S-13 S-113 2.192 2.683 2.739 2.090 2.761 2.548 18 0.802 0.365
S-14 S-114 2.317 2.894 2.950 2.264 2.935 2.751 18 0.802 0.365 0.188 0.062
S-15 S-115 2.442 3.090 3.155 2.286 3.074 2.933 12 0.905 0.365 0.188 0.062
S-16 S-116 2.692 3.293 3.362 2.366 3.194 3.137 12 0.905 0.428 0.188 0.062
S-17 S-117 2.942 3.497 3.566 2.476 3.302 3.340 12 0.936 0.428
S-18 S-118 3.192 3.700 3.776 2.636 3.543 3.527 12 1.020 0.428
S-19 S-119 3.317 3.904 3.982 2.750 3.692 3.730 12 1.051 0.428 0.188 0.062
S-20 S-120 3.442 4.107 4.199 2.859 3.961 3.918 12 1.083 0.428
S-21 S-121 3.692 4.314 4.412 2.977 4.157 4.122 12 1.083 0.428
S-22 S-122 3.942 4.524 4.619 3.196 4.338 4.325 12 1.145 0.428
S-24 S-124 4.192 4.937 5.035 3.456 4.638 4.716 12 1.176 0.428
S-26 S-126 4.442 5.350 5.452 3.752 4.972 5.106 12 1.239 0.552 0.281 0.125
S-28 S-128 4.942 5.757 5.869 3.971 5.313 5.497 12 1.301 0.740
S-30 S-130 5.192 6.167 6.282 4.231 5.611 5.888 12 1.364 0.740 0.281 0.125
S-32 S-132 5.442 6.584 6.696 4.568 5.910 6.284 8 1.520 0.740 0.281 0.125
S-34 S-134 5.942 6.997 7.109 4.837 6.178 6.659 8 1.551 0.865
S-36 S-136 6.442 7.404 7.522 5.028 6.446 7.066 8

1.583

 0.865
S-38 S-138 6.942 7.814 7.939 5.251 6.748 7.472 8 1.614 0.865
S-40 S-140 7.192 8.221 8.355 5.474 7.085 7.847 8 1.676 0.990
S-44 S-144 7.942 9.041 9.153 5.891 7.277 8.628 8 1.708 0.990
S-48 S-148 8.942 9.878 9.994 6.628 8.099 9.422 6 1.989 0.302      1.125  0.500
S-52 S-152 9.442 10.734 10.832 7.583 8.764 10.192 6 2.135 0.302      1.188  0.500

Product Model : S-3000

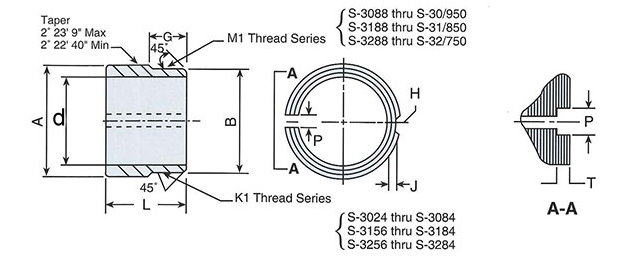

                                    proimages/product/03SNP_SNW/03-01_S-3000_drawing.jpg
Dimensions in inches

Sleeve NumberSleeve Bore Dia d maxDiameter to Sharp Corner A minLength L minMajor Dia B Max
        S- 3000 S- 3100 S- 3200 S- 3000 S- 3100 S- 3200
S- 3024     4.192 4.890     2.937     4.716
S- 3026     4.442 5.304     3.227     5.106
S- 3028     4.942 5.701     3.330     5.497
S- 3030     5.192 6.105     3.482     5.888
S- 3032     5.442 6.512     3.701     6.284
S- 3034     5.942 6.929     4.009     6.659
S- 3036     6.442 7.346     4.327     7.066
S- 3038     6.942 7.744     4.402     7.472
S- 3040     7.192 8.161     4.740     7.847
S- 3044     7.942 8.976     5.120     8.628
S- 3048     8.942 9.771     5.422     9.442
S- 3052     9.444 10.600     6.009     10.192
S- 3056 S- 3156 S- 3256 10.444 11.394 11.526 11.624 6.181 7.756 8.937 11.004
S- 3060 S- 3160 S- 3260 10.944 12.221 12.359 12.464 6.717 8.370 9.630 11.785
S- 3064 S- 3164 S- 3264 11.944 13.020 13.201 13.306 6.936 9.101 10.361 12.562
S- 3068 S- 3168 S- 3268 12.444 13.847 14.034 14.146 7.533 9.777 11.116 13.303
S- 3072 S- 3172 S- 3272 13.444 14.639 14.829 14.960 7.569 9.852 11.427 14.134
S- 3076 S- 3176 S- 3276 13.944 15.430 15.623 15.774 7.733 10.056 11.867 14.921
S- 3080 S- 3180 S- 3280 15.006 16.260 16.430 16.614 8.401 10.449 12.654 15.709
S- 3084 S- 3184 S- 3284 15.756 17.056 17.298 17.456 8.488 11.402 13.292 16.496
S- 3088 S- 3188 S- 3288 16.506 17.868 18.094 18.271 9.100 11.817 13.943 17.283
S- 3092 S- 3192 S- 3292 17.006 18.675 18.928 19.111 9.336 12.368 14.573 18.071
S- 3096 S- 3196 S- 3296 18.006 19.469 19.741 19.945 9.446 12.714 15.155 18.858
S-30/500 S-31/500 S-32/500 18.506 20.263 20.581 20.817 9.838 13.657 16.491 19.646
S-30/530 S-31/530 S-32/530 19.506 21.507 21.793 22.065 10.579 14.004 17.271 20.827
S-30/560 S-31/560 S-32/560 21.006 22.721 23.000 23.279 11.222 14.569 17.915 22.008
S-30/600 S-31/600 S-32/600 22.006 24.316 24.644 24.933 11.451 15.388 18.853 23.583
S-30/630 S-31/630 S-32/630 24.006 25.537 25.875 26.193 11.924 15.979 19.798 24.764
S-30/670 S-31/670 S-32/670 25.006 27.175 27.522 27.857 12.835 17.008 21.024 26.339
S-30/710 S-31/710 S-32/710 26.506 28.769 29.127 29.471 13.509 17.801 21.935 27.914
S-30/750 S-31/750 S-32/750 28.006 30.394 30.771 31.132 14.093 18.620 22.982 29.489
S-30/800 S-31/800   29.506 32.389 32.772   14.408 19.014   31.457
S-30/850 S-31/850   31.506 34.407 34.827   14.991 20.030   33.426
S-30/900     33.506 36.402     15.681     35.394
S-30/950     36.506 38.438     16.492     37.363

Sleeve
Number		Threads No. per InchG
max		Slot
Width
F
min		ReliefLockplate
Slot

K1
M1		J
max		H
min		P
min		T
min
          S- 3000 S- 3100
S-3024     12   1.260   0.428
S-3026     12   1.323   0.552 0.281 0.125
S-3028     12   1.385   0.740
S-3030     12   1.416   0.740 0.281 0.125
S-3032     8   1.478   0.740 0.281 0.125
S-3034     8   1.510   0.865
S-3036     8   1.541   0.865
S-3038     8   1.604   0.865
S-3040     8   1.666   0.990
S-3044     8   1.760   0.990
S-3048     6   1.978   0.302     1.125 0.500
S-3052     6   2.135   0.302     1.188 0.500
S-3056 S- 3156 S- 3256 6   2.229 2.229 0.302     1.250 0.500
S-3060 S- 3160 S- 3260 6   2.291 2.291 0.302     1.375 0.500
S-3064 S- 3164 S- 3264 6   2.385 2.385 0.302     1.438 0.500
S-3068 S- 3168 S- 3268   5 2.541 2.541 0.302     1.500 0.500
S-3072 S- 3172 S- 3272   5 2.541 2.541 0.365     1.500 0.500
S-3076 S- 3176 S- 3276   5 2.666 2.666 0.365     1.500 0.500
S-3080 S- 3180 S- 3280   5 2.823 2.885 0.365     1.625 0.500
S-3084 S- 3184 S- 3284   5 2.823 2.948 0.365     1.625 0.500
S-3088 S- 3188 S- 3288   5 3.228 3.228 0.365     1.812 0.500
S-3092 S- 3192 S- 3292   5 3.228 3.323 0.365     1.812 0.500
S-3096 S- 3196 S- 3296   5 3.260 3.354 0.365



   1.812 0.500
S-30/500 S- 31/500 S- 32/500   5 3.573 3.666 0.365     1.812 0.500
S-30/530 S- 31/530 S- 32/530   4 3.573 3.666 0.490     1.812 0.500
S-30/560 S- 31/560 S- 32/560

4

 3.823 3.916 0.490     1.812 0.500
S-30/600 S- 31/600 S- 32/600   4 3.916 3.916 0.490     1.812 0.500
S-30/630 S- 31/630 S- 32/630   4 3.916 3.916 0.490     2.000 0.500
S-30/670 S- 31/670 S- 32/670   4 4.104 4.104 0.490     2.000 0.625
S-30/710 S- 31/710 S- 32/710   3 4.541 4.635 0.490     2.000 0.625
S-30/750 S- 31/750 S- 32/750   3 4.541 4.635 0.490     2.000 0.625
S-30/800 S- 31/800     3 4.541 4.635 0.490     2.000 0.625
S-30/850 S- 31/850     3 4.573 4.760 0.490     2.000 0.625
S-30/900       3 4.948   0.490     2.000 0.625
S-30/950       3 4.948   0.490     2.000 0.625
