Reliable Withdrawal Sleeves from AH2 to AH241

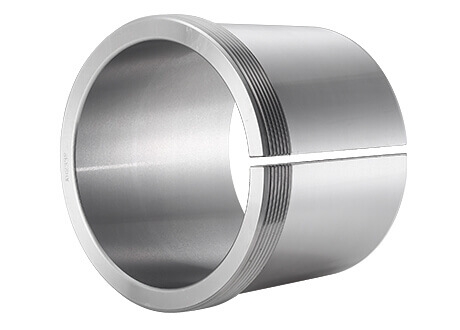

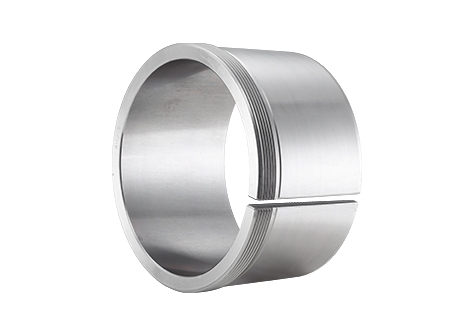

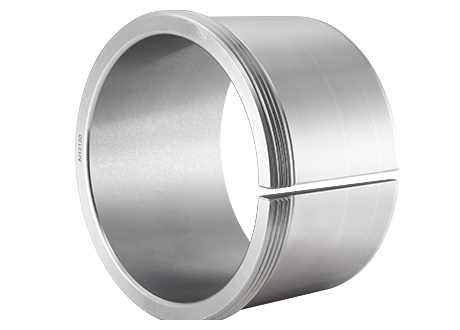

Product Name : Withdrawal Sleeve

Product Description

AH2, AH3, AH22, AH23, AH30, AH31, AH32, AH39, AH240, AH241 withdrawal sleeves are commonly used industrial sleeves for mounting spherical roller bearings on tapered shafts. Typically, withdrawal sleeves are pressed into the bearing's inner bore and secured on the shaft using a locknut or end plate. For larger bearings, greater force is required to overcome the friction on the mating surfaces when pressing them onto the shaft. Hydraulic devices can simplify this process by aiding in the installation of withdrawal sleeves.

Q'ty :

Inquiry

Product Introduction

AH2
AH3
AH22
AH23
AH30
AH31
AH32
AH39
AH240
AH241

Product Model : AH2

Withdrawal Sleeves No.	d1 mm	L mm	L¹⁾₁ mm	b mm	Thread²⁾D1 mm	Appropriate Withdrawal Nut No.	Weight kg
AH208	35	25	27	6	M45*1.5	AN09	0.081
AH209	40	26	29	6	M50*1.5	AN10	0.095
AH210	45	28	31	7	M55*2	AN11	0.114
AH211	50	29	32	7	M60*2	AN12	0.132
AH212	55	32	35	8	M65*2	AN13	0.161
AH213	60	32.5	36	8	M75*2	AN15	0.213
AH214	65	33.5	37	8	M80*2	AN16	0.240
AH215	70	34.5	38	8	M85*2	AN17	0.259
AH216	75	35.5	39	8	M90*2	AN18	0.284
AH217	80	38.5	42	9	M95*2	AN19	0.314
AH218	85	40	44	9	M100*2	AN20	0.351
AH219	90	43	47	10	M105*2	AN21	0.403
AHX220	95	45	49	10	M110*2	AN22	0.481
AHX222	105	50	54	11	M120*2	AN24	0.547
Dimension L1 decreases as the withdrawal sleeve is driven in during mounting						M means metric thread

Product Model : AH3

Withdrawal Sleeves No.	d1 mm	L mm	L¹⁾₁ mm	b mm	Thread²⁾D1 mm	Appropriate Withdrawal Nut No.	Weight kg
AH308	35	29	32	6	M45*1.5	AN09	0.090
AH309	40	31	34	6	M50*1.5	AN10	0.109
AHX310	45	35	38	7	M55*2	AN11	0.137
AHX311	50	37	40	7	M60*2	AN12	0.161
AHX312	55	40	43	8	M65*2	AN13	0.189
AH313	60	42	45	8	M75*2	AN15	0.253
AH314	65	43	47	8	M80*2	AN16	0.280
AH315	70	45	49	8	M85*2	AN17	0.313
AH316	75	48	52	8	M90*2	AN18	0.365
AHX317	80	52	56	9	M95*2	AN19	0.429
AHX318	85	53	57	9	M100*2	AN20	0.461
AHX319	90	57	61	10	M105*2	AN21	0.532
AHX320	95	59	63	10	M110*2	AN22	0.582
AHX322	105	63	67	12	M120*2	AN24	0.663
Dimension L1 decreases as the withdrawal sleeve is driven in during mounting						M means metric thread

Product Model : AH22

Withdrawal Sleeves No.	d1 mm	L mm	L¹⁾₁ mm	b mm	Thread²⁾D1 mm	Appropriate Withdrawal Nut No.	Weight kg
AH2236	170	105	110	17	M200*3	AN40	3.730
AH2238	180	112	117	18	Tr210*4	HN42	4.250
AH2240	190	118	123	19	Tr220*4	HN44	4.680
AH2244	200	130	136	20	Tr240*4	HN48	9.100
AH2248	220	144	150	21	Tr260*4	HN52	11.100
AH2252	240	155	161	23	Tr290*4	HN58	14.000
AH2256	260	155	163	24	Tr310*5	HN62	15.200
AH2260	280	170	178	26	Tr330*5	HN66	18.100
AH2264	300	180	190	27	Tr350*5	HN70	20.200
Dimension L1 decreases as the withdrawal sleeve is driven in during mounting						M means metric thread, Tr means 30°, trapezoid thread and the digits are outside diameter of thread and pitch.

Product Model : AH23

Withdrawal Sleeves No.	d1 mm	L mm	L¹⁾₁ mm	b mm	Thread²⁾D1 mm	Appropriate Withdrawal Nut No.	Weight kg
AH2308	35	40	43	7	M45*1.5	AN09	0.128
AH2309	40	44	47	7	M50*1.5	AN10	0.164
AHX2310	45	50	53	9	M55*2	AN11	0.209
AHX2311	50	54	57	10	M60*2	AN12	0.253
AHX2312	55	58	61	11	M65*2	AN13	0.297
AH2313	60	61	64	12	M75*2	AN15	0.395
AHX2314	65	64	68	12	M80*2	AN16	0.466
AHX2315	70	68	72	12	M85*2	AN17	0.534
AHX2316	75	71	75	12	M90*2	AN18	0.597
AHX2317	80	74	78	13	M95*2	AN19	0.670
AHX2318	85	79	83	14	M100*2	AN20	0.779
AHX2319	90	85	89	16	M105*2	AN21	0.886
AHX2320	95	90	94	16	M110*2	AN22	0.998
AHX2322	105	98	102	16	M125*2	AN25	1.350
AHX2324	115	105	109	17	M135*2	AN27	1.600
AHX2326	125	115	119	19	M145*2	AN29	1.970
AHX2328	135	125	130	20	M155*3	AN31	2.330
AHX2330	145	135	140	24	M165*3	AN33	2.820
AH2332	150	140	146	24	M180*3	AN36	4.720
AH2334	160	146	152	24	M190*3	AN38	5.250
AH2336	170	154	160	26	M200*3	AN40	5.830
AH2338	180	160	167	26	Tr210*4	HN42	6.630
AH2340	190	170	177	30	Tr220*4	HN44	7.540
AH2344	200	181	189	30	Tr240*4	HN48	13.500
AH2348	220	189	197	30	Tr260*4	HN52	15.500
AH2352	240	205	213	30	Tr290*4	HN58	19.600
AH2356	260	212	220	30	Tr310*5	HN62	21.600
Dimension L1 decreases as the withdrawal sleeve is driven in during mounting						M means metric thread, Tr means 30°, trapezoid thread and the digits are outside diameter of thread and pitch.

Product Model : AH30

Withdrawal Sleeves No.	d1 mm	L mm	L¹⁾₁ mm	b mm	Thread²⁾D1 mm	Appropriate Withdrawal Nut No.	Weight kg
AHX3024	115	60	64	13	M130*2	AN26	0.750
AHX3026	125	67	71	14	M140*2	AN28	0.930
AHX3028	135	68	73	14	M150*2	AN30	1.010
AHX3030	145	72	77	15	M160*3	AN32	1.150
AH3032	150	77	82	16	M170*3	AN34	2.060
AH3034	160	85	90	17	M180*3	AN36	2.430
AH3036	170	92	98	17	M190*3	AN38	2.810
AH3038	180	96	102	18	Tr205*4	HNL41	3.320
AH3040	190	102	108	19	Tr215*4	HNL43	3.800
AH3044	200	111	117	20	Tr235*4	HNL47	7.400
AH3048	220	116	123	21	Tr260*4	HNL52	8.750
AH3052	240	128	135	23	Tr280*4	HNL56	10.700
AH3056	260	131	139	24	Tr300*4	HNL60	12.000
AH3060	280	145	153	26	Tr320*5	HNL64	14.400
AH3064	300	149	157	27	Tr345*5	HNL69	16.000
AH3068	320	162	171	28	Tr365*5	HNL73	19.500
AH3072	340	167	176	30	Tr385*5	HNL77	21.000
AH3076	360	170	180	31	Tr410*5	HNL82	23.200
AH3080	380	183	193	33	Tr430*5	HNL86	27.300
AH3084	400	186	196	34	Tr450*5	HNL90	29.000
AHX3088	420	194	205	35	Tr470*5	HNL94	32.000
AHX3092	440	202	213	37	Tr490*5	HNL98	35.200
AHX3096	460	205	217	38	Tr520*6	HNL104	39.200
AHX30/500	480	209	221	40	Tr540*6	HNL108	42.500
Dimension L1 decreases as the withdrawal sleeve is driven in during mounting						M means metric thread, Tr means 30°, trapezoid thread and the digits are outside diameter of thread and pitch.

Product Model : AH31

Withdrawal Sleeves No.	d1 mm	L mm	L¹⁾₁ mm	b mm	Thread²⁾D1 mm	Appropriate Withdrawal Nut No.	Weight kg
AHX3120	95	64	68	11	M110*2	AN22	0.650
AHX3122	105	68	72	11	M120*2	AN24	0.760
AHX3124	115	75	79	12	M130*2	AN26	0.950
AHX3126	125	78	82	12	M140*2	AN28	1.080
AHX3128	135	83	88	14	M150*2	AN30	1.280
AHX3130	145	96	101	15	M165*3	AN33	1.790
AH3132	150	103	108	16	M180*3	AN36	3.210
AH3134	160	104	109	16	M190*3	AN38	3.400
AH3136	170	116	122	19	M200*3	AN40	4.220
AH3138	180	125	131	20	Tr210*4	HN42	4.890
AH3140	190	134	140	21	Tr220*4	HN44	5.490
AH3144	200	145	151	23	Tr240*4	HN48	10.400
AH3148	220	154	161	25	Tr260*4	HN52	12.000
AH3152	240	172	179	26	Tr290*4	HN58	16.200
AH3156	260	175	183	28	Tr310*5	HN62	17.500
AH3160	280	192	200	30	Tr330*5	HN66	20.800
AH3164	300	209	217	31	Tr350*5	HN70	24.500
AH3168	320	225	234	33	Tr370*5	HN74	29.000
AH3172	340	229	238	35	Tr400*5	HN80	33.000
AH3176	360	232	242	36	Tr420*5	HN84	35.700
AH3180	380	240	250	38	Tr440*5	HN88	39.500
AH3184	400	266	276	40	Tr460*5	HN92	46.500
AHX3188	420	270	281	42	Tr480*5	HN96	49.800
AHX3192	440	285	296	43	Tr510*6	HN102	57.900
AHX3196	460	295	307	45	Tr530*6	HN106	63.100
AHX31/500	480	313	325	47	Tr550*6	HN110	70.900
Dimension L1 decreases as the withdrawal sleeve is driven in during mounting						M means metric thread, Tr means 30°, trapezoid thread and the digits are outside diameter of thread and pitch.

Product Model : AH32

Withdrawal Sleeves No.	d1 mm	L mm	L¹⁾₁ mm	b mm	Thread²⁾D1 mm	Appropriate Withdrawal Nut No.	Weight kg
AHX3218	85	63	67	10	M100*2	AN20	0.576
AHX3220	95	73	77	11	M110*2	AN22	0.767
AHX3222	105	82	86	11	M125*2	AN25	1.040
AHX3224	115	90	94	13	M135*2	AN27	1.300
AHX3226	125	98	102	15	M145*2	AN29	1.580
AHX3228	135	104	109	15	M155*3	AN31	1.840
AHX3230	145	114	119	17	M165*3	AN33	2.220
AH3232	150	124	130	20	M180*3	AN36	4.080
AH3234	160	134	140	24	M190*3	AN38	4.800
AH3236	170	140	146	24	M200*3	AN40	5.320
AH3238	180	145	152	25	Tr210*4	HN42	5.900
AH3240	190	153	160	25	Tr220*4	HN44	6.680
AH3260	280	228	236	34	Tr330*5	HN66	26.000
AH3264	300	246	254	36	Tr350*5	HN70	30.600
AH3268	320	264	273	38	Tr370*5	HN74	35.800
AH3272	340	274	283	40	Tr400*5	HN80	41.600
AH3276	360	284	294	42	Tr420*5	HN84	46.300
AH3280	380	302	312	44	Tr440*5	HN88	52.500
AH3284	400	321	331	46	Tr460*5	HN92	59.700
AHX3288	420	330	341	48	Tr480*5	HN96	64.800
AHX3292	440	349	360	50	Tr510*6	HN102	75.200
AHX3296	460	364	376	52	Tr530*6	HN106	83.100
AHX32/500	480	393	405	54	Tr550*6	HN110	94.700
Dimension L1 decreases as the withdrawal sleeve is driven in during mounting						M means metric thread, Tr means 30°, trapezoid thread and the digits are outside diameter of thread and pitch.

Product Model : AH39

Withdrawal Sleeves No.	d1 mm	L mm	L¹⁾₁ mm	b mm	Thread²⁾D1 mm	Appropriate Withdrawal Nut No.	Weight kg
AH3936	170	66	71	13	M190*3	AN38	1.910
AH3938	180	66	71	13	M200*3	AN40	2.020
AH3940	190	77	83	16	Tr210*4	HN42	2.620
AH3944	200	77	83	16	Tr230*4	HN46	4.830
AH3948	220	77	83	16	Tr250*4	HN50	5.290
AH3952	240	94	100	18	Tr270*4	HN54	7.060
AH3956	260	94	100	18	Tr290*4	HN58	7.700
AH3960	280	112	119	21	Tr310*5	HN62	10.100
AH3964	300	112	119	21	Tr330*5	HN66	10.800
AH3968	320	112	119	21	Tr360*5	HNL72	12.400
AH3972	340	112	119	21	Tr380*5	HNL76	13.100
AH3976	360	130	138	22	Tr400*5	HNL80	15.900
AH3980	380	130	138	22	Tr420*5	HNL84	17.200
AH3984	400	130	138	22	Tr440*5	HNL88	18.100
AH3988	420	145	153	25	Tr460*5	HNL92	21.500
AH3992	440	145	153	25	Tr480*5	HNL96	22.500
AH3996	460	158	167	28	Tr500*5	HNL100	26.000
AH39/500	480	162	172	32	Tr520*6	HNL104	27.700
Dimension L1 decreases as the withdrawal sleeve is driven in during mounting						M means metric thread, Tr means 30°, trapezoid thread and the digits are outside diameter of thread and pitch.

Product Model : AH240

Withdrawal Sleeves No.	d1 mm	L mm	L¹⁾₁ mm	b mm	Thread²⁾D1 mm	Appropriate Withdrawal Nut No.	Weight kg
AH24024	115	73	82	13	M125*2	AN25	0.650
AH24026	125	83	93	14	M135*2	AN27	0.840
AH20428	135	83	93	14	M145*2	AN29	0.910
AH24030	145	90	101	15	M155*3	AN31	1.040
AH24032	150	95	106	15	M170*3	AN34	2.330
AH24034	160	106	117	16	M180*3	AN36	2.800
AH24036	170	116	127	16	M190*3	AN38	3.100
AH24038	180	118	131	18	M200*3	AN40	3.500
AH24040	190	127	140	18	Tr210*4	HN42	3.930
AH24044	200	138	152	20	Tr230*4	HN46	8.250
AH24048	220	138	153	20	Tr250*4	HN50	9.000
AH24052	240	162	178	22	Tr270*4	HN54	11.800
AH24056	260	162	179	22	Tr290*4	HN58	12.800
AH24060	280	184	202	24	Tr310*5	HN62	15.500
AH24064	300	184	202	24	Tr330*5	HN66	16.600
AH24068	320	206	225	26	Tr360*5	HNL72	21.700
AH24072	340	206	226	26	Tr380*5	HNL76	22.700
AH24076	360	208	228	28	Tr400*5	HNL80	23.700
AH24080	380	228	248	28	Tr420*5	HNL84	27.100
AH24084	400	230	252	30	Tr440*5	HNL88	29.000
AH24088	420	242	264	30	Tr460*5	HNL92	31.900
AH24092	440	250	273	32	Tr480*5	HNL96	34.700
AH24096	460	250	273	32	Tr500*5	HNL100	36.600
AH240/500	480	253	276	35	Tr520*6	HNL104	39.500
Dimension L1 decreases as the withdrawal sleeve is driven in during mounting						M means metric thread, Tr means 30°, trapezoid thread and the digits are outside diameter of thread and pitch.

Product Model : AH241

Withdrawal Sleeves No.	d1 mm	L mm	L¹⁾₁ mm	b mm	Thread²⁾D1 mm	Appropriate Withdrawal Nut No.	Weight kg
AH24122	105	82	91	13	M115*2	AN23	0.730
AH24124	115	93	102	13	M130*2	AN26	1.000
AH24126	125	94	104	14	M140*2	AN28	1.110
AH24128	135	99	109	14	M150*2	AN30	1.250
AH24130	145	115	126	15	M160*3	AN32	1.560
AH24132	150	124	135	15	M170*3	AN34	3.000
AH24134	160	125	136	16	M180*3	AN36	3.210
AH24136	170	134	145	16	M190*3	AN38	3.680
AH24138	180	146	159	18	M200*3	AN40	4.280
AH24140	190	158	171	18	Tr210*4	HN42	5.100
AH24144	200	170	184	20	Tr230*4	HN46	10.200
AH24148	220	180	195	20	Tr260*4	HN52	12.500
AH24152	240	202	218	22	Tr280*4	HN56	15.400
AH24156	260	202	219	22	Tr300*4	HN60	16.300
AH24160	280	224	242	24	Tr320*5	HN64	19.500
AH24164	300	242	260	24	Tr340*5	HN68	21.400
AH24168	320	269	288	26	Tr360*5	HN72	27.100
AH24172	340	269	289	26	Tr380*5	HN76	29.600
AH24176	360	271	291	28	Tr400*5	HN80	31.300
AH24180	380	278	298	28	Tr420*5	HN84	34.400
AH24184	400	310	332	30	Tr440*5	HN88	40.300
AH24188	420	310	332	30	Tr460*5	HN92	42.300
AH24192	440	332	355	32	Tr480*5	HN96	47.600
AH24196	460	343	368	35	Tr500*5	HN100	52.700
AH241/500	480	362	387	37	Tr520*6	HN104	58.800
Dimension L1 decreases as the withdrawal sleeve is driven in during mounting						M means metric thread, Tr means 30°, trapezoid thread and the digits are outside diameter of thread and pitch.
